STL8DN6LF3

STL8DN6LF3

Part NumberSTL8DN6LF3

ManufacturerSTMicroelectronics

DescriptionMOSFET 2N-CH 60V 20A 5X6

DatasheetSTL8DN6LF3

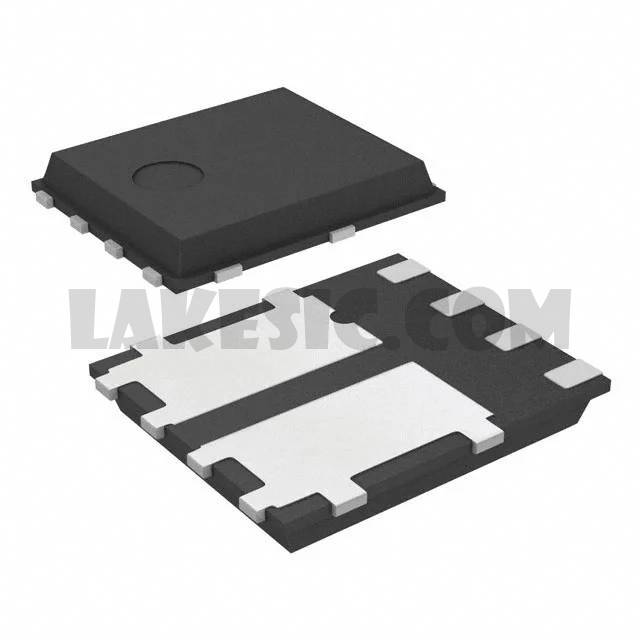

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 60V 20A 65W Surface Mount PowerFlat™ (5x6)

To learn about the specification of STL8DN6LF3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STL8DN6LF3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STL8DN6LF3.
We are offering STL8DN6LF3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STL8DN6LF3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	STL8DN6LF3
Standard Package	3000
Manufacturer	STMicroelectronics
Series	Automotive, AEC-Q101, STripFET™ III
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	20A
Rds On (Max) @ Id, Vgs	30mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	668pF @ 25V
Power - Max	65W
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerVDFN
Supplier Device Package	PowerFlat™ (5x6)
Base Part Number	ST*8DN
