CSICD05-1200 TR13

CSICD05-1200 TR13

Part NumberCSICD05-1200 TR13

ManufacturerCentral Semiconductor Corp

DescriptionDIODE SCHOTTKY 1.2KV 5A DPAK

DatasheetCSICD05-1200 Datasheet

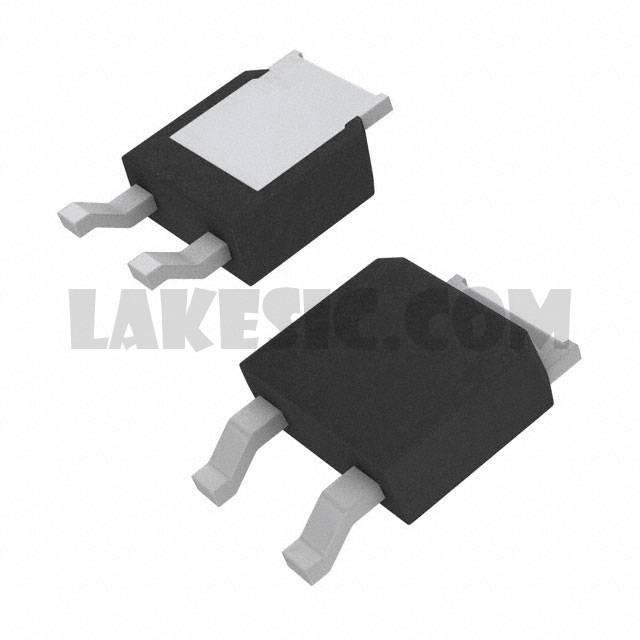

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Silicon Carbide Schottky 1200V 5A Surface Mount DPAK

To learn about the specification of CSICD05-1200 TR13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSICD05-1200 TR13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSICD05-1200 TR13.
We are offering CSICD05-1200 TR13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSICD05-1200 TR13 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	CSICD05-1200 Datasheet
Standard Package	1
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max)	1200V
Current - Average Rectified (Io)	5A
Voltage - Forward (Vf) (Max) @ If	1.7V @ 5A
Speed	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr)	0ns
Current - Reverse Leakage @ Vr	190µA @ 1200V
Capacitance @ Vr, F	240pF @ 1V, 1MHz
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	DPAK
Operating Temperature - Junction	-55°C ~ 175°C
