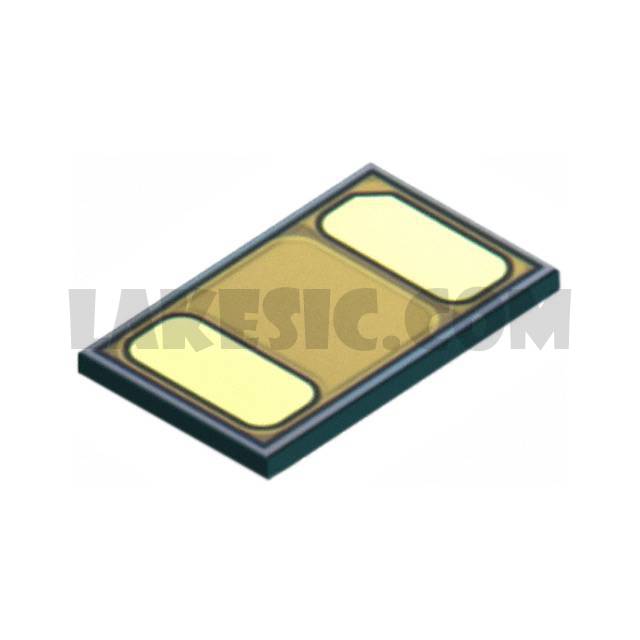

DB2G40800L1

DB2G40800L1

Part NumberDB2G40800L1

ManufacturerPanasonic Electronic Components

DescriptionDIODE SCHOTTKY 40V 1A 0402

DatasheetDB2G40800L1 Datasheet

Package / Case0402 (1006 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 40V 1A Surface Mount 0402 (1005 Metric)

To learn about the specification of DB2G40800L1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DB2G40800L1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DB2G40800L1.
We are offering DB2G40800L1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DB2G40800L1 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	DB2G40800L1 Datasheet
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	460mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	8.8ns
Current - Reverse Leakage @ Vr	1200µA @ 40V
Capacitance @ Vr, F	28pF @ 10V, 1MHz
Mounting Type	Surface Mount
Package / Case	0402 (1006 Metric)
Supplier Device Package	0402 (1005 Metric)
Operating Temperature - Junction	150°C (Max)
