Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	DBLS101G - DBLS107G
Standard Package	1
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	400V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 15A
Current - Reverse Leakage @ Vr	2µA @ 400V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	DBLS

LMB8S-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 800V Surface Mount LMBS-1,	View
CBRHD-01 TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Standard 100V Surface Mount 4-HD DIP,	View
KMB210STR	SMC Diode Solutions, Bridge Rectifier Single Phase Schottky 100V Surface Mount MBS,	View
DBLS159G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1.4kV Surface Mount DBLS,	View
BGX50AE6327HTSA1	Infineon Technologies, Bridge Rectifier Single Phase Standard 70V Surface Mount PG-SOT143-4,	View
DF10S	ON Semiconductor, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-SDIP,	View
DF04S2	ON Semiconductor, Bridge Rectifier Single Phase Standard 400V Surface Mount 4-SDIP,	View
DF1510S-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount DF-S,	View
SDB155-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 600V Surface Mount SDB-1,	View
HD04-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 400V Surface Mount 4-MiniDIP,	View
DF005S-E3/45	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 50V Surface Mount DFS,	View
DF10S-G	Comchip Technology, Bridge Rectifier Single Phase Standard 1kV Surface Mount DFS,	View

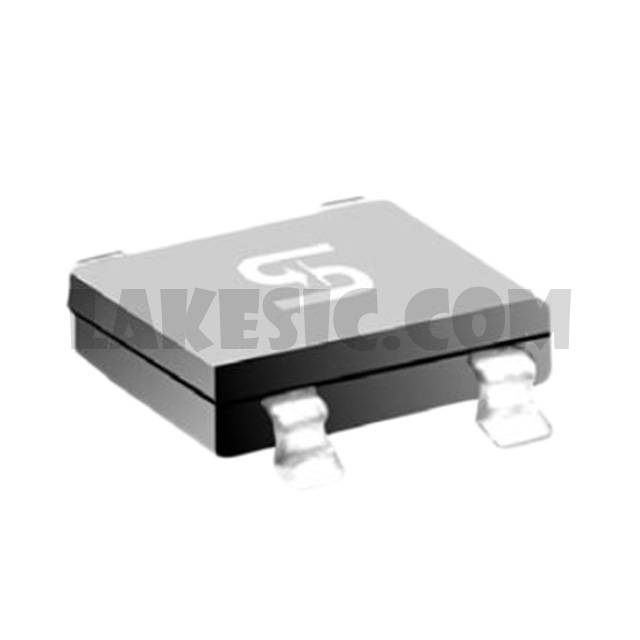

DBLS104G RDG

Part NumberDBLS104G RDG
