Categories	Capacitors / Electric Double Layer Capacitors (EDLC), Supercapacitors
Datasheet	DB, DBN Series
Standard Package	100
Manufacturer	Elna America
Series	DBN
Packaging	Bulk
Part Status	Active
Capacitance	1F
Tolerance	-20%, +80%
Voltage - Rated	5.5V
ESR (Equivalent Series Resistance)	20Ohm @ 1kHz
Lifetime @ Temp.	1000 Hrs @ 70°C
Termination	PC Pins
Mounting Type	Through Hole
Package / Case	Radial, Can
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.846" Dia (21.50mm)
Height - Seated (Max)	0.315" (8.00mm)
Operating Temperature	-25°C ~ 70°C

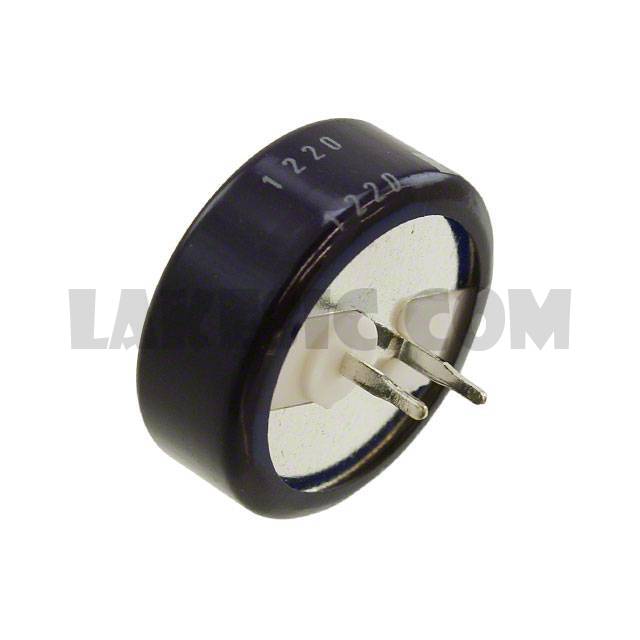

DBN-5R5D105T	Elna America, 1F (EDLC) Supercapacitor 5.5V Radial, Can 20Ohm @ 1kHz 1000 Hrs @ 70°C, DBN	View
DB-5R5D155T	Elna America, 1.5F (EDLC) Supercapacitor 5.5V Radial, Can 30Ohm @ 1kHz 1000 Hrs @ 70°C, DB	View
DB-5R5D224T	Elna America, 220mF (EDLC) Supercapacitor 5.5V Radial, Can 75Ohm @ 1kHz 1000 Hrs @ 70°C, DB	View
DBN-5R5D224T	Elna America, 220mF (EDLC) Supercapacitor 5.5V Radial, Can 25Ohm @ 1kHz 1000 Hrs @ 70°C, DBN	View
DB-5R5D104T	Elna America, 100mF (EDLC) Supercapacitor 5.5V Radial, Can 75Ohm @ 1kHz 1000 Hrs @ 70°C, DB	View
DBN-5R5D334T	Elna America, 330mF (EDLC) Supercapacitor 5.5V Radial, Can 25Ohm @ 1kHz 1000 Hrs @ 70°C, DBN	View
DB-5R5D474T	Elna America, 470mF (EDLC) Supercapacitor 5.5V Radial, Can 30Ohm @ 1kHz 1000 Hrs @ 70°C, DB	View
DBN-5R5D474T	Elna America, 470mF (EDLC) Supercapacitor 5.5V Radial, Can 20Ohm @ 1kHz 1000 Hrs @ 70°C, DBN	View
DB-5R5D473T	Elna America, 47mF (EDLC) Supercapacitor 5.5V Radial, Can 120Ohm @ 1kHz 1000 Hrs @ 70°C, DB	View
DB-5R5D105T	Elna America, 1F (EDLC) Supercapacitor 5.5V Radial, Can 30Ohm @ 1kHz 1000 Hrs @ 70°C, DB	View
DB-5R5D334T	Elna America, 330mF (EDLC) Supercapacitor 5.5V Radial, Can 75Ohm @ 1kHz 1000 Hrs @ 70°C, DB	View
DBN-5R5D104T	Elna America, 100mF (EDLC) Supercapacitor 5.5V Radial, Can 25Ohm @ 1kHz 1000 Hrs @ 70°C, DBN	View

DBN-5R5D105T

Part NumberDBN-5R5D105T
