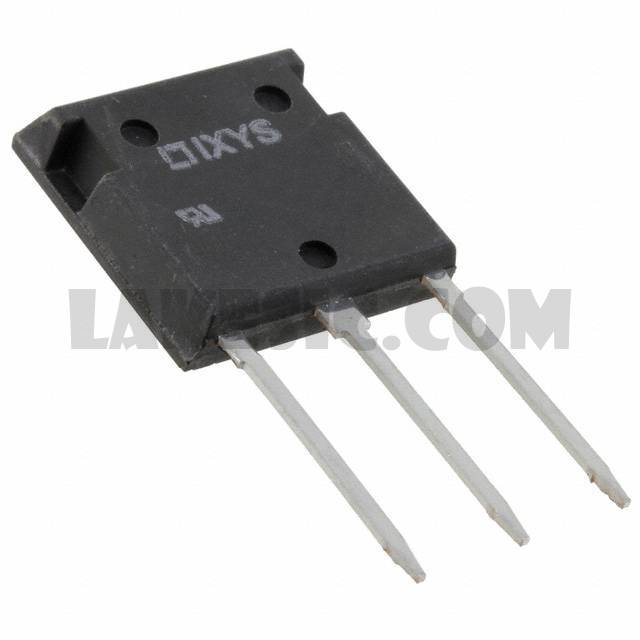

DHH55-36N1F

Part NumberDHH55-36N1F

ManufacturerIXYS

DescriptionDIODE ARRAY GP 1800V 60A I4PAC

DatasheetDHH55-36N1F

Package / Casei4-Pac™-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Series Connection Standard 1800V 60A Through Hole i4-Pac™-3

To learn about the specification of DHH55-36N1F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DHH55-36N1F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DHH55-36N1F.
We are offering DHH55-36N1F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DHH55-36N1F - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	DHH55-36N1F
Standard Package	25
Manufacturer	IXYS
Series	-
Packaging	Tube
Part Status	Active
Diode Configuration	1 Pair Series Connection
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1800V
Current - Average Rectified (Io) (per Diode)	60A
Voltage - Forward (Vf) (Max) @ If	2.04V @ 60A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	230ns
Current - Reverse Leakage @ Vr	200µA @ 1800V
Operating Temperature - Junction	-55°C ~ 150°C
Mounting Type	Through Hole
Package / Case	i4-Pac™-3
Supplier Device Package	i4-PAC™
