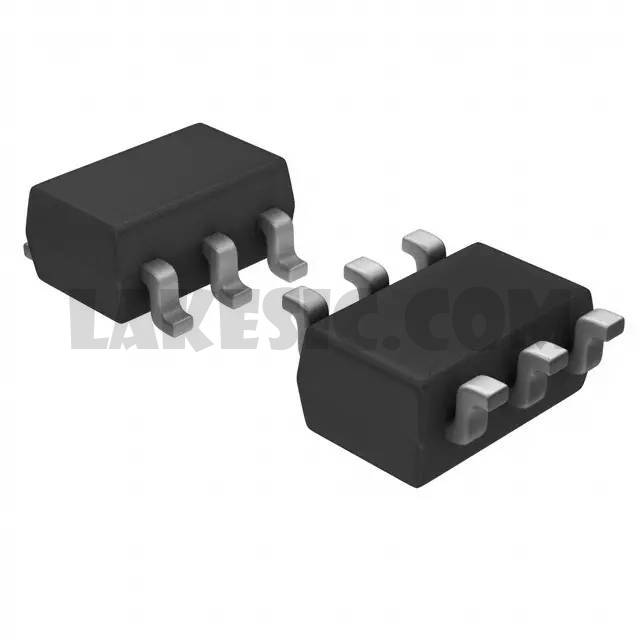

DMC204A00R

DMC204A00R

Part NumberDMC204A00R

ManufacturerPanasonic Electronic Components

DescriptionTRANS 2NPN 20V 0.5A MINI6

DatasheetDMC204A0

Package / CaseSOT-23-6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 2 NPN (Dual) 20V 500mA 150MHz 300mW Surface Mount Mini6-G4-B

To learn about the specification of DMC204A00R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMC204A00R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMC204A00R.
We are offering DMC204A00R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMC204A00R - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	DMC204A0
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	2 NPN (Dual)
Current - Collector (Ic) (Max)	500mA
Voltage - Collector Emitter Breakdown (Max)	20V
Vce Saturation (Max) @ Ib, Ic	400mV @ 20mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 500mA, 2V
Power - Max	300mW
Frequency - Transition	150MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-23-6
Supplier Device Package	Mini6-G4-B
Base Part Number	DMC204
