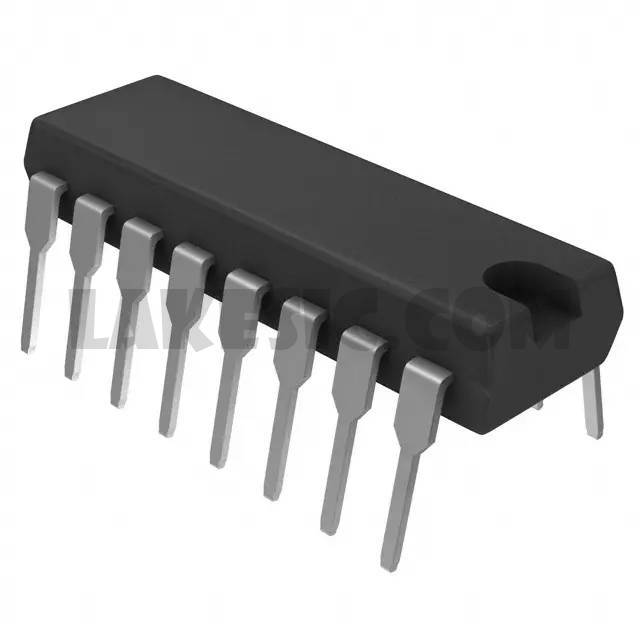

ULN2004A

ULN2004A

Part NumberULN2004A

ManufacturerSTMicroelectronics

DescriptionIC PWR RELAY 7NPN 1:1 16DIP

DatasheetULN200x(A,D1)

Package / Case16-DIP (0.300", 7.62mm)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 7 NPN Darlington 50V 500mA Through Hole 16-DIP

To learn about the specification of ULN2004A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ULN2004A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ULN2004A.
We are offering ULN2004A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ULN2004A - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	ULN200x(A,D1)
Standard Package	25
Manufacturer	STMicroelectronics
Series	-
Packaging	Tube
Part Status	Active
Transistor Type	7 NPN Darlington
Current - Collector (Ic) (Max)	500mA
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	1.6V @ 500µA, 350mA
Current - Collector Cutoff (Max)	50µA
DC Current Gain (hFE) (Min) @ Ic, Vce	1000 @ 350mA, 2V
Power - Max	-
Frequency - Transition	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Through Hole
Package / Case	16-DIP (0.300", 7.62mm)
Supplier Device Package	16-DIP
Base Part Number	ULN2004A
