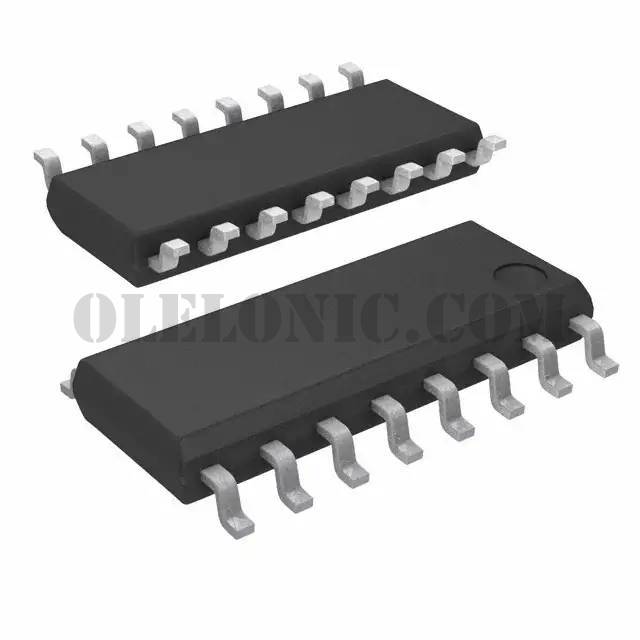

ULN2003ADRG4

ULN2003ADRG4

Part NumberULN2003ADRG4

ManufacturerTexas Instruments

DescriptionIC PWR RELAY 7NPN 1:1 16SOIC

DatasheetULx200xA(I)

Package / Case16-SOIC (0.154", 3.90mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 7 NPN Darlington 50V 500mA Surface Mount 16-SOIC

To learn about the specification of ULN2003ADRG4, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ULN2003ADRG4 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ULN2003ADRG4.
We are offering ULN2003ADRG4 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ULN2003ADRG4 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	ULx200xA(I)
Standard Package	1
Manufacturer	Texas Instruments
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	7 NPN Darlington
Current - Collector (Ic) (Max)	500mA
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	1.6V @ 500µA, 350mA
Current - Collector Cutoff (Max)	50µA
DC Current Gain (hFE) (Min) @ Ic, Vce	-
Power - Max	-
Frequency - Transition	-
Operating Temperature	-20°C ~ 70°C (TA)
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	16-SOIC
Base Part Number	ULN2003A
