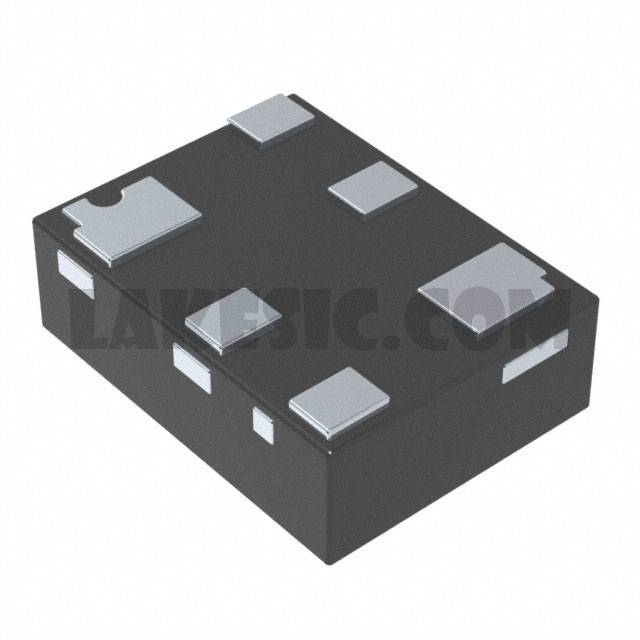

DMC21D1UDA-7B

Part NumberDMC21D1UDA-7B

ManufacturerDiodes Incorporated

DescriptionMOSFET N/P-CH 20V X2DFN0806-6

DatasheetDMC21D1UDA

Package / Case6-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel 20V 455mA (Ta), 328mA (Ta) 300mW Surface Mount X2-DFN0806-6

To learn about the specification of DMC21D1UDA-7B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMC21D1UDA-7B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMC21D1UDA-7B.
We are offering DMC21D1UDA-7B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMC21D1UDA-7B - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	DMC21D1UDA
Standard Package	10000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N and P-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	455mA (Ta), 328mA (Ta)
Rds On (Max) @ Id, Vgs	990mOhm @ 100mA, 4.5V, 1.9Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.41nC @ 4.5V, 0.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	31pF @ 15V, 28.5pF @ 15V
Power - Max	300mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-SMD, No Lead
Supplier Device Package	X2-DFN0806-6
