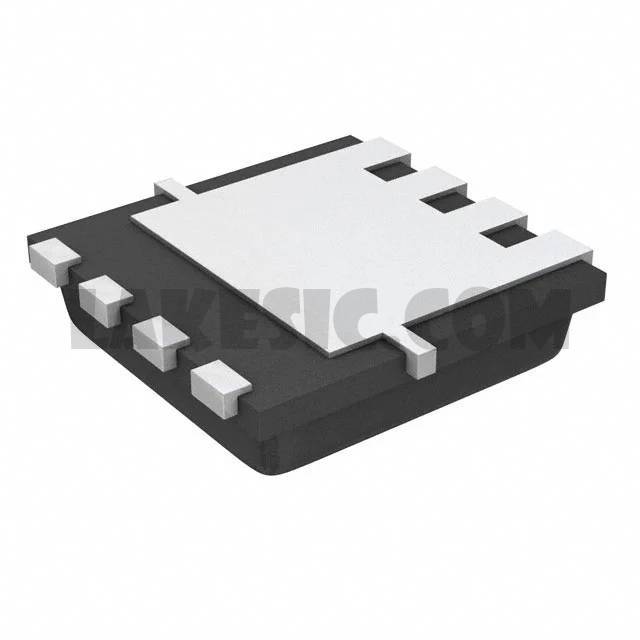

DMN3025LFV-13

DMN3025LFV-13

Part NumberDMN3025LFV-13

ManufacturerDiodes Incorporated

DescriptionMOSFET N-CHAN 25A 30V POWERDI333

DatasheetDMN3025LFV

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 25A (Tc) 900mW (Ta) Surface Mount PowerDI3333-8 (Type UX)

To learn about the specification of DMN3025LFV-13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMN3025LFV-13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMN3025LFV-13.
We are offering DMN3025LFV-13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMN3025LFV-13 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMN3025LFV
Standard Package	1
Manufacturer	Diodes Incorporated
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	25A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	18mOhm @ 7A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	9.8nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	500pF @ 15V
FET Feature	-
Power Dissipation (Max)	900mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerDI3333-8 (Type UX)
Package / Case	8-PowerVDFN
