DMP4025LSD-13

DMP4025LSD-13

Part NumberDMP4025LSD-13

ManufacturerDiodes Incorporated

DescriptionMOSFET 2P-CH 40V 6.9A 8SO

DatasheetDMP4025LSD

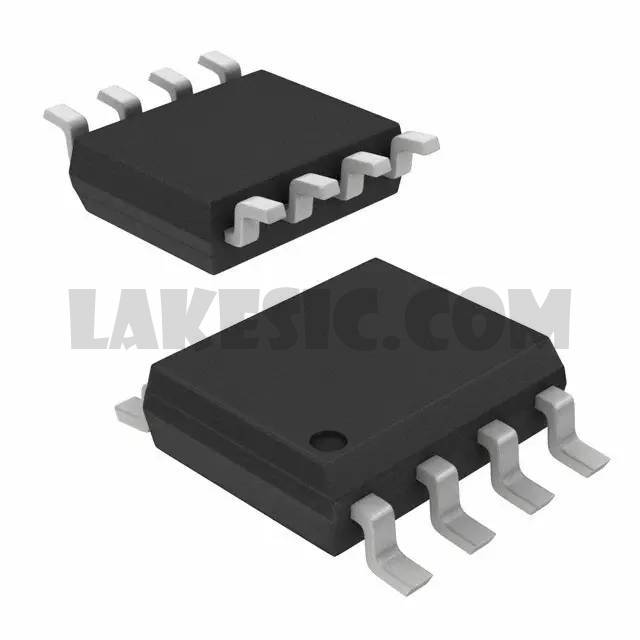

Package / Case8-SOIC (0.154", 3.90mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 P-Channel (Dual) 40V 6.9A 1.8W Surface Mount 8-SO

To learn about the specification of DMP4025LSD-13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMP4025LSD-13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMP4025LSD-13.
We are offering DMP4025LSD-13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMP4025LSD-13 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	DMP4025LSD
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	6.9A
Rds On (Max) @ Id, Vgs	25mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	1.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	33.7nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1640pF @ 20V
Power - Max	1.8W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SO
Base Part Number	DMP4025LSD
