NTLUD3A260PZTBG

NTLUD3A260PZTBG

Part NumberNTLUD3A260PZTBG

ManufacturerON Semiconductor

DescriptionMOSFET 2P-CH 20V 1.3A UDFN6

DatasheetNTLUD3A260PZ

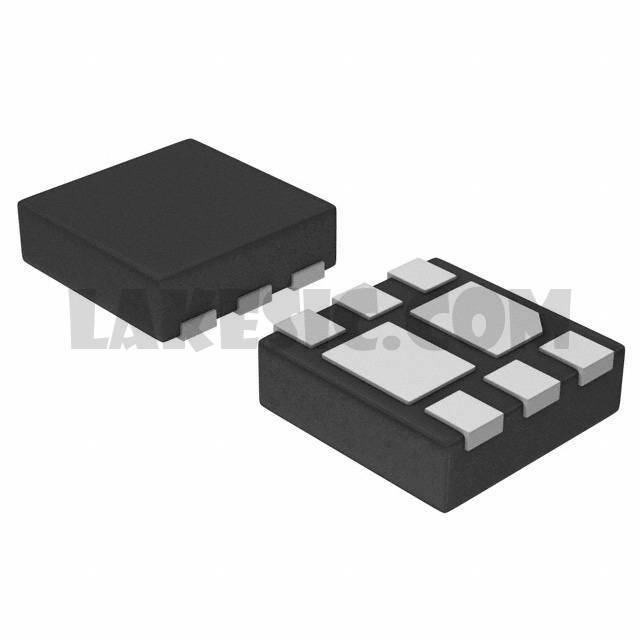

Package / Case6-UFDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 P-Channel (Dual) 20V 1.3A 500mW Surface Mount 6-UDFN (1.6x1.6)

To learn about the specification of NTLUD3A260PZTBG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NTLUD3A260PZTBG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NTLUD3A260PZTBG.
We are offering NTLUD3A260PZTBG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NTLUD3A260PZTBG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	NTLUD3A260PZ
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	1.3A
Rds On (Max) @ Id, Vgs	200mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	4.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	300pF @ 10V
Power - Max	500mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-UFDFN Exposed Pad
Supplier Device Package	6-UDFN (1.6x1.6)
