DMP4025SFGQ-13

DMP4025SFGQ-13

Part NumberDMP4025SFGQ-13

ManufacturerDiodes Incorporated

DescriptionMOSFET P-CH 40V 7.2A POWERDI3333

DatasheetDMP4025SFG

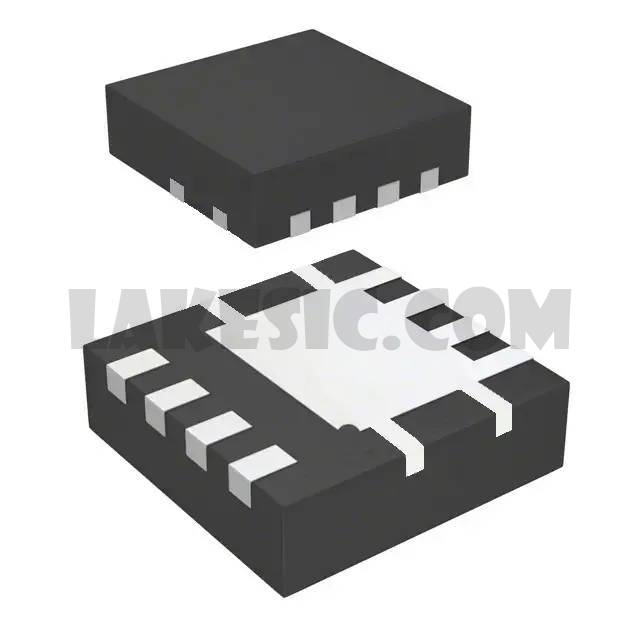

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 40V 7.2A (Ta) 810mW (Ta) Surface Mount PowerDI3333-8

To learn about the specification of DMP4025SFGQ-13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMP4025SFGQ-13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMP4025SFGQ-13.
We are offering DMP4025SFGQ-13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMP4025SFGQ-13 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMP4025SFG
Standard Package	1
Manufacturer	Diodes Incorporated
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	7.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	25mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	1.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	33.7nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1643pF @ 20V
FET Feature	-
Power Dissipation (Max)	810mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerDI3333-8
Package / Case	8-PowerVDFN
