DMTH4004SCTB-13

DMTH4004SCTB-13

Part NumberDMTH4004SCTB-13

ManufacturerDiodes Incorporated

DescriptionMOSFET BVDSS: 31V 40V TO263 T&R

DatasheetDMTH4004SCTB

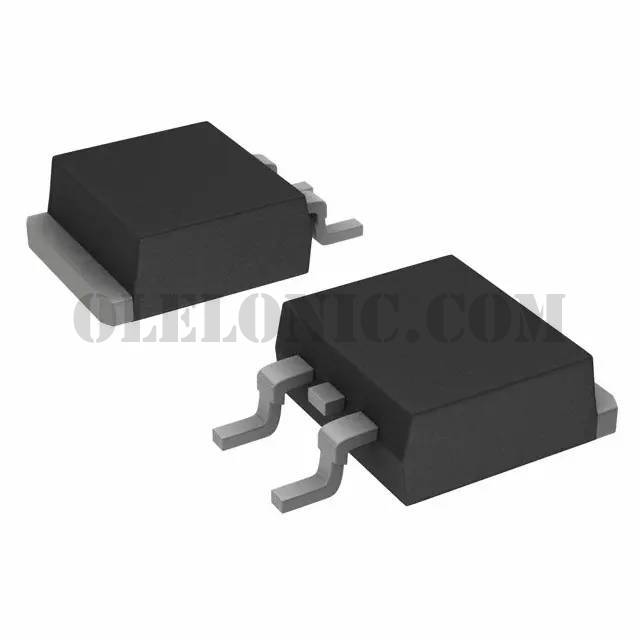

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 100A (Tc) 4.7W (Ta), 136W (Tc) Surface Mount TO-263AB

To learn about the specification of DMTH4004SCTB-13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMTH4004SCTB-13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMTH4004SCTB-13.
We are offering DMTH4004SCTB-13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMTH4004SCTB-13 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMTH4004SCTB
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	68.6nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4305pF @ 25V
FET Feature	-
Power Dissipation (Max)	4.7W (Ta), 136W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263AB
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
