DMTH6002LPS-13

DMTH6002LPS-13

Part NumberDMTH6002LPS-13

ManufacturerDiodes Incorporated

DescriptionMOSFET N-CH 60V 100A POWERDI5060

DatasheetDMTH6002LPS

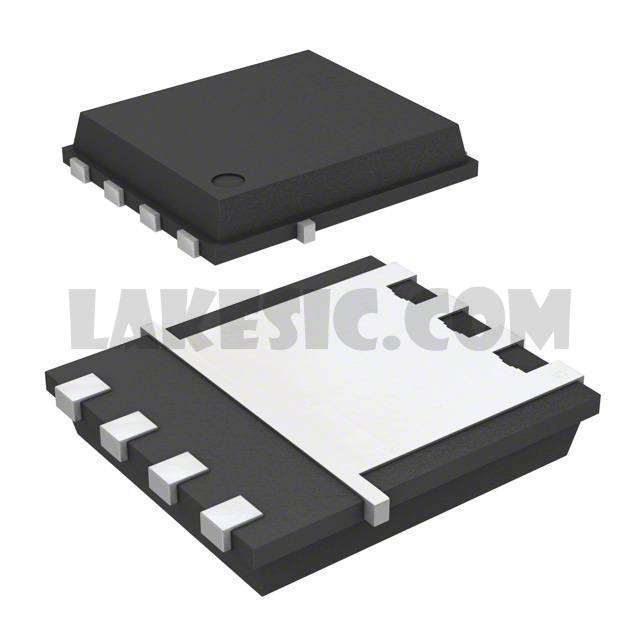

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 100A (Tc) 167W Surface Mount PowerDI5060-8

To learn about the specification of DMTH6002LPS-13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMTH6002LPS-13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMTH6002LPS-13.
We are offering DMTH6002LPS-13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMTH6002LPS-13 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMTH6002LPS
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	2mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	130.8nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6555pF @ 30V
FET Feature	-
Power Dissipation (Max)	167W
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerDI5060-8
Package / Case	8-PowerTDFN
