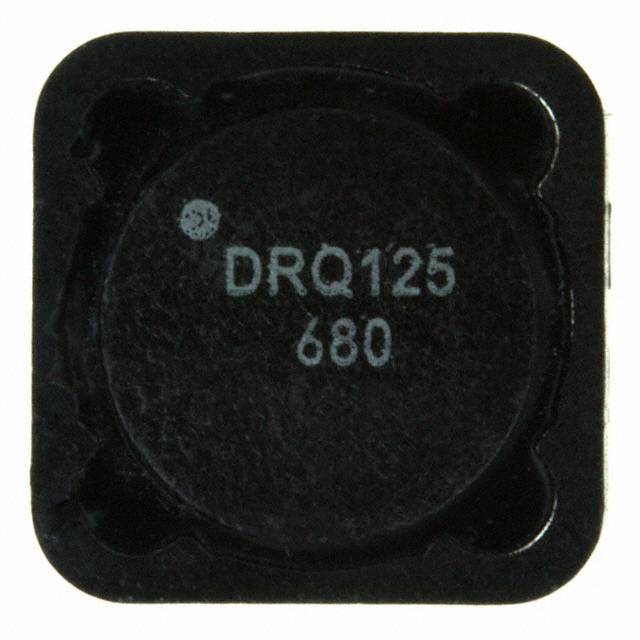

DRQ125-680-R


DRQ125-680-R

Part NumberDRQ125-680-R

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

DRQ125-680-R - Product Attributes

Categories Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet
Standard Package600
ManufacturerEaton - Electronics Division
SeriesDRQ
PackagingTape & Reel (TR)
Part StatusActive
Number of Coils2
Inductance - Connected In Parallel67.91µH
Inductance - Connected In Series271.6µH
Tolerance±20%
Current Rating - Parallel2.22A
Current Rating - Series1.11A
Current Saturation - Parallel2.7A
Current Saturation - Series1.35A
DC Resistance (DCR) - Parallel101mOhm
DC Resistance (DCR) - Series440mOhm
ShieldingShielded
Ratings-
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.492" L x 0.492" W (12.50mm x 12.50mm)
Height0.236" (6.00mm)
