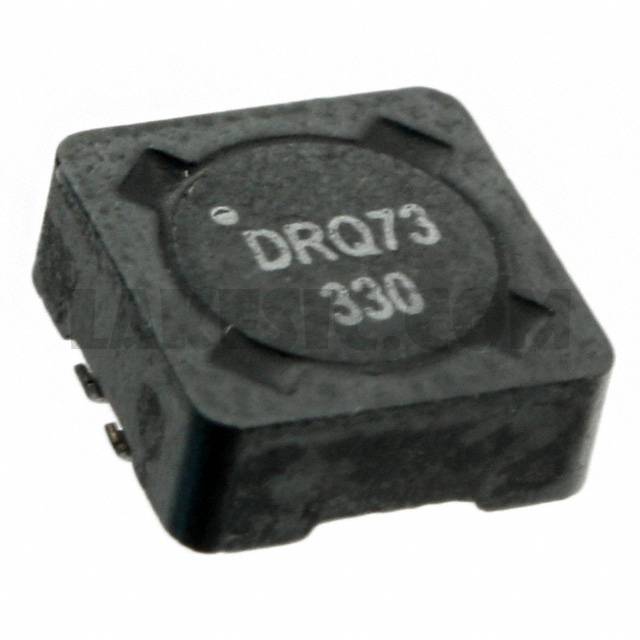

DRQ73-330-R


DRQ73-330-R

Part NumberDRQ73-330-R

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

DRQ73-330-R - Product Attributes

Categories Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet
Standard Package1350
ManufacturerEaton - Electronics Division
SeriesDRQ
PackagingTape & Reel (TR)
Part StatusActive
Number of Coils2
Inductance - Connected In Parallel34.41µH
Inductance - Connected In Series137.6µH
Tolerance±20%
Current Rating - Parallel1.31A
Current Rating - Series653mA
Current Saturation - Parallel1.35A
Current Saturation - Series680mA
DC Resistance (DCR) - Parallel166mOhm
DC Resistance (DCR) - Series665mOhm
ShieldingShielded
Ratings-
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.299" L x 0.299" W (7.60mm x 7.60mm)
Height0.140" (3.55mm)
