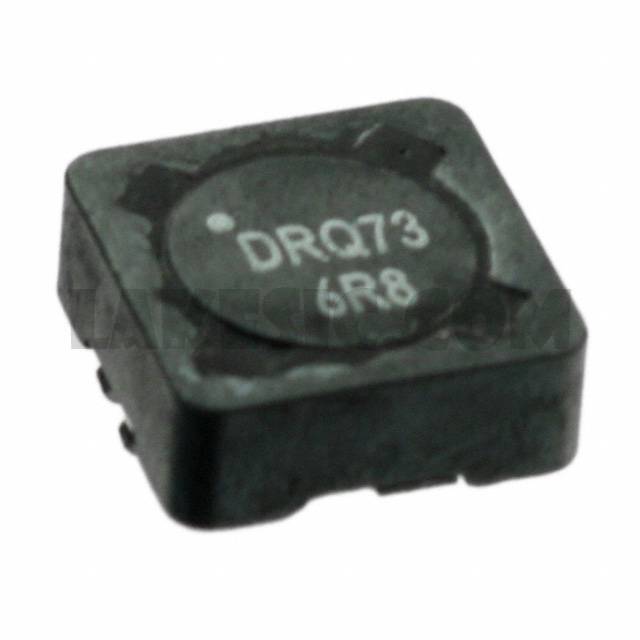

DRQ73-6R8-R

Part NumberDRQ73-6R8-R

ManufacturerEaton - Electronics Division

DescriptionINDUCT ARRAY 2 COIL 6.48UH SMD

DatasheetDRQ Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 25.92µH Inductance - Connected in Series 6.48µH Inductance - Connected in Parallel 43.5mOhm DC Resistance (DCR) - Parallel 2.55A Nonstandard

To learn about the specification of DRQ73-6R8-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DRQ73-6R8-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DRQ73-6R8-R.
We are offering DRQ73-6R8-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DRQ73-6R8-R - Product Attributes

Categories	Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet	DRQ Series
Standard Package	1350
Manufacturer	Eaton - Electronics Division
Series	DRQ
Packaging	Tape & Reel (TR)
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	6.48µH
Inductance - Connected In Series	25.92µH
Tolerance	±20%
Current Rating - Parallel	2.55A
Current Rating - Series	1.28A
Current Saturation - Parallel	3.12A
Current Saturation - Series	1.56A
DC Resistance (DCR) - Parallel	43.5mOhm
DC Resistance (DCR) - Series	174.2mOhm
Shielding	Shielded
Ratings	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.299" L x 0.299" W (7.60mm x 7.60mm)
Height	0.140" (3.55mm)
