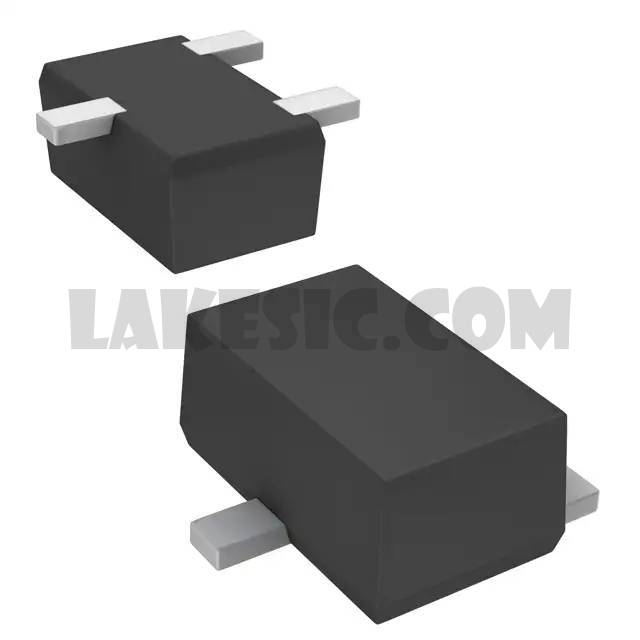

DSA5001R0L

DSA5001R0L

Part NumberDSA5001R0L

ManufacturerPanasonic Electronic Components

DescriptionTRANS PNP 50V 0.1A SMINI3

DatasheetDSA5001

Package / CaseSC-85

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 50V 100mA 150MHz 150mW Surface Mount SMini3-F2-B

To learn about the specification of DSA5001R0L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DSA5001R0L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DSA5001R0L.
We are offering DSA5001R0L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DSA5001R0L - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	DSA5001
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	100mA
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	500mV @ 10mA, 100mA
Current - Collector Cutoff (Max)	100µA
DC Current Gain (hFE) (Min) @ Ic, Vce	210 @ 2mA, 10V
Power - Max	150mW
Frequency - Transition	150MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-85
Supplier Device Package	SMini3-F2-B
Base Part Number	DSA5001
