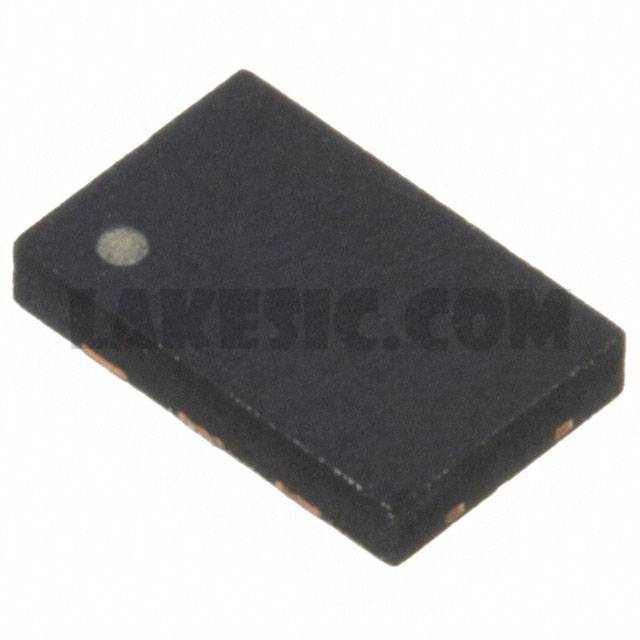

DSC8101BL2

Part NumberDSC8101BL2

ManufacturerMicrochip Technology

DescriptionMEMS OSC PROG BLANK 10MHZ-170MHZ

DatasheetDSC8101,21 Datasheet

Package / Case4-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionXO (Standard) CMOS 10MHz ~ 170MHz Programmable Oscillator 2.25V ~ 3.6V Standby 4-SMD, No Lead

To learn about the specification of DSC8101BL2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DSC8101BL2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DSC8101BL2.
We are offering DSC8101BL2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DSC8101BL2 - Product Attributes

Categories	Crystals, Oscillators, Resonators / Programmable Oscillators
Datasheet	DSC8101,21 Datasheet
Standard Package	72
Manufacturer	Microchip Technology
Series	DSC8101
Packaging	Tube
Part Status	Active
Base Resonator	MEMS
Type	XO (Standard)
Programmable Type	Blank (User Must Program)
Available Frequency Range	10MHz ~ 170MHz
Function	Standby
Output	CMOS
Voltage - Supply	2.25V ~ 3.6V
Frequency Stability	±25ppm
Frequency Stability (Total)	-
Operating Temperature	-40°C ~ 105°C
Spread Spectrum Bandwidth	-
Current - Supply (Max)	35mA
Ratings	-
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension	0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max)	0.035" (0.90mm)
Current - Supply (Disable) (Max)	95µA
