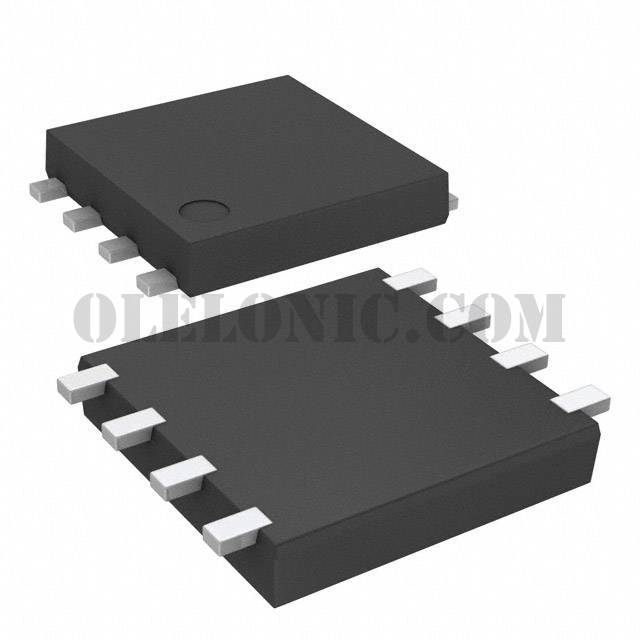

ECH8667-TL-H

ECH8667-TL-H

Part NumberECH8667-TL-H

ManufacturerON Semiconductor

DescriptionMOSFET 2P-CH 30V 5.5A ECH8

DatasheetECH8667

Package / Case8-SMD, Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 P-Channel (Dual) 30V 5.5A 1.5W Surface Mount 8-ECH

To learn about the specification of ECH8667-TL-H, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ECH8667-TL-H with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ECH8667-TL-H.
We are offering ECH8667-TL-H for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ECH8667-TL-H - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	ECH8667
Standard Package	3000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	5.5A
Rds On (Max) @ Id, Vgs	39mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	13nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	600pF @ 10V
Power - Max	1.5W
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SMD, Flat Lead
Supplier Device Package	8-ECH
