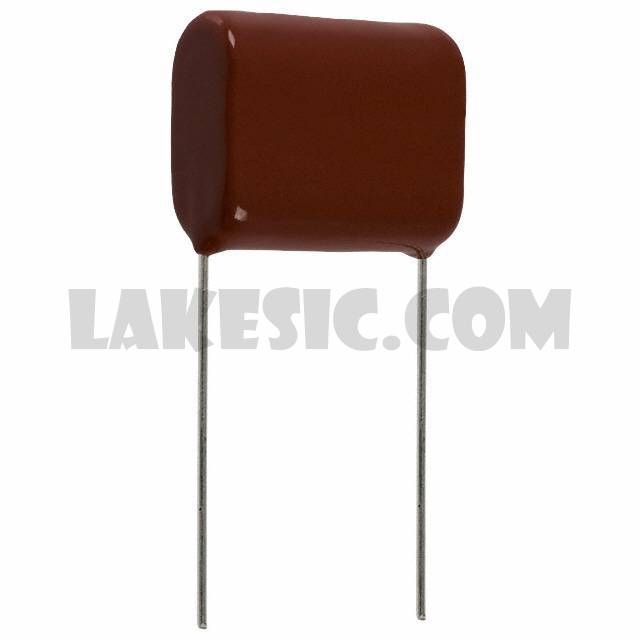

Categories	Capacitors / Film Capacitors
Datasheet	ECQ-E(F) Series
Standard Package	100
Manufacturer	Panasonic Electronic Components
Series	ECQ-E(F)
Packaging	Bulk
Part Status	Active
Capacitance	8.2µF
Tolerance	±5%
Voltage Rating - AC	-
Voltage Rating - DC	100V
Dielectric Material	Polyester, Metallized
Operating Temperature	-40°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.024" L x 0.394" W (26.00mm x 10.00mm)
Height - Seated (Max)	0.846" (21.50mm)
Termination	PC Pins
Lead Spacing	0.886" (22.50mm)
Applications	General Purpose
Ratings	-
Features	-
