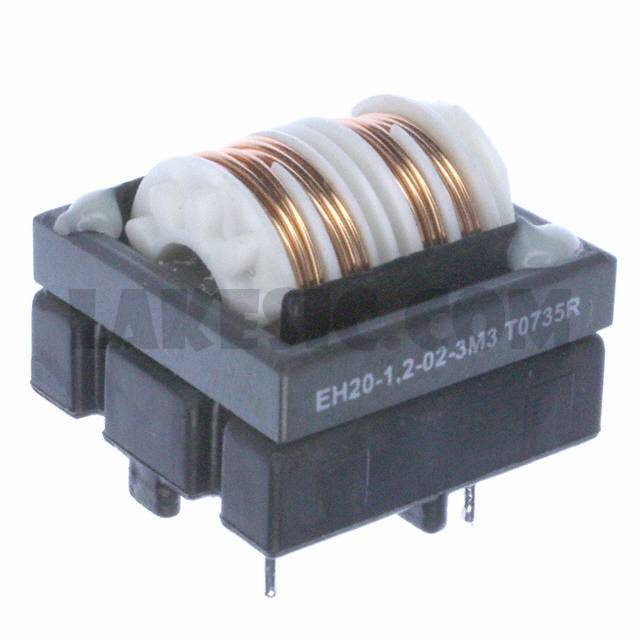

EH20-1.2-02-3M3

EH20-1.2-02-3M3

Part NumberEH20-1.2-02-3M3

ManufacturerSchaffner EMC Inc.

DescriptionCMC 3.3MH 1.2A 2LN TH

DatasheetEV,EH Series

Package / CaseHorizontal, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description3.3mH @ 400Hz 2 Line Common Mode Choke Through Hole 1.2A DCR 127mOhm (Typ)

To learn about the specification of EH20-1.2-02-3M3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EH20-1.2-02-3M3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EH20-1.2-02-3M3.
We are offering EH20-1.2-02-3M3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

EH20-1.2-02-3M3 - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	EV,EH Series
Standard Package	500
Manufacturer	Schaffner EMC Inc.
Series	EH
Packaging	Tray
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	3.3mH @ 400Hz
Current Rating (Max)	1.2A
DC Resistance (DCR) (Max)	127mOhm (Typ)
Voltage Rating - DC	-
Voltage Rating - AC	250V
Operating Temperature	-25°C ~ 100°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	0.827" L x 0.827" W (21.00mm x 21.00mm)
Height (Max)	0.740" (18.80mm)
Package / Case	Horizontal, 4 PC Pin
