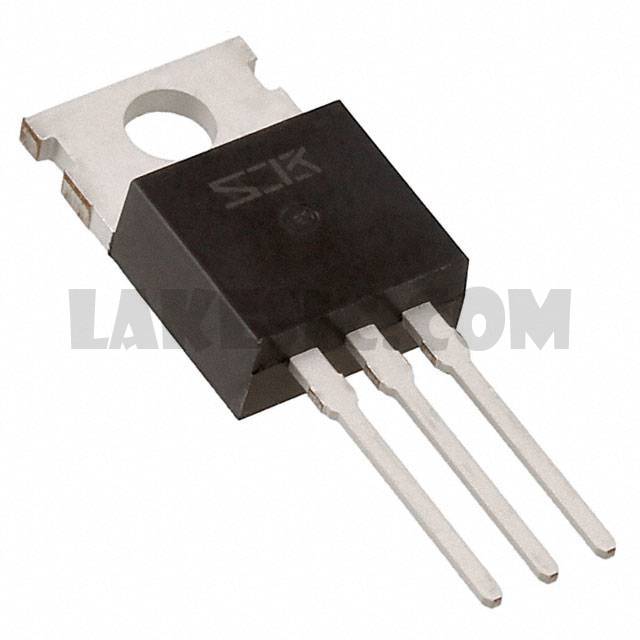

EKI04036

EKI04036

Part NumberEKI04036

ManufacturerSanken

DescriptionMOSFET N-CH 40V 80A TO-220

DatasheetEKI04036

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 80A (Tc) 116W (Tc) Through Hole TO-220-3

To learn about the specification of EKI04036, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EKI04036 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EKI04036.
We are offering EKI04036 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

EKI04036 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	EKI04036
Standard Package	50
Manufacturer	Sanken
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.8mOhm @ 58.5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	63.2nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3910pF @ 25V
FET Feature	-
Power Dissipation (Max)	116W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-3
Package / Case	TO-220-3
