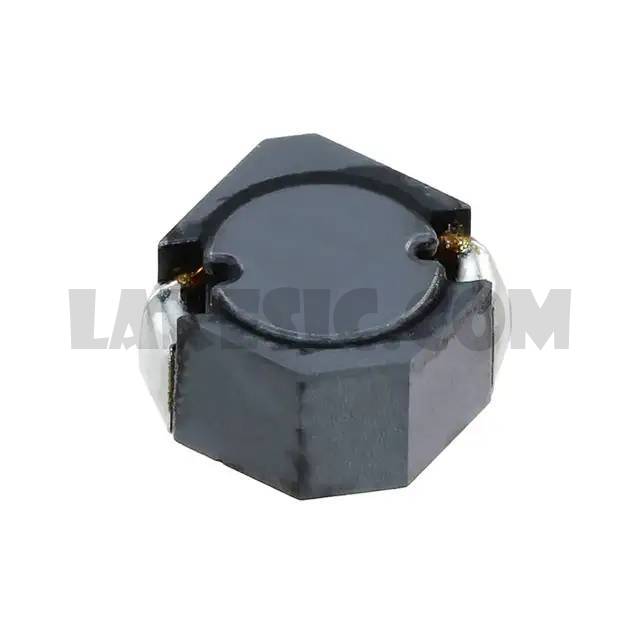

ELL-8TP331MB

ELL-8TP331MB

Part NumberELL-8TP331MB

ManufacturerPanasonic Electronic Components

DescriptionFIXED IND 330UH 570MA 700 MOHM

DatasheetELL-8TP Series Datasheet

Package / CaseNonstandard, Corner Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description330µH Shielded Wirewound Inductor 570mA 700mOhm Nonstandard, Corner Terminals

To learn about the specification of ELL-8TP331MB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ELL-8TP331MB with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ELL-8TP331MB.
We are offering ELL-8TP331MB for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ELL-8TP331MB - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	ELL-8TP Series Datasheet
Standard Package	500
Manufacturer	Panasonic Electronic Components
Series	P
Packaging	Tape & Reel (TR)
Part Status	Last Time Buy
Type	Wirewound
Material - Core	-
Inductance	330µH
Tolerance	±20%
Current Rating (Amps)	570mA
Current - Saturation	450mA
Shielding	Shielded
DC Resistance (DCR)	700mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 105°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard, Corner Terminals
Size / Dimension	0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max)	0.197" (5.00mm)
