Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	EPC2015C Datasheet
Standard Package	1
Manufacturer	EPC
Series	eGaN®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	53A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	4mOhm @ 33A, 5V
Vgs(th) (Max) @ Id	2.5V @ 9mA
Gate Charge (Qg) (Max) @ Vgs	8.7nC @ 5V
Vgs (Max)	+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds	1180pF @ 20V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Die
Package / Case	Die

EPC2037	EPC, N-Channel 100V 1.7A (Ta) Surface Mount Die, eGaN®	View
TP90H180PS	Transphorm, N-Channel 900V 15A (Tc) 78W (Tc) Through Hole TO-220AB,	View
EPC2053	EPC, N-Channel 100V 48A Surface Mount Die, eGaN®	View
EPC2038	EPC, N-Channel 100V 500mA (Ta) Surface Mount Die, eGaN®	View
TPH3206LSB	Transphorm, N-Channel 650V 16A (Tc) 81W (Tc) Surface Mount PQFN (8x8),	View
EPC2016C	EPC, N-Channel 100V 18A (Ta) Surface Mount Die, eGaN®	View
EPC2049ENGRT	EPC, N-Channel 40V 16A (Ta) Surface Mount Die, eGaN®	View
EPC2010C	EPC, N-Channel 200V 22A (Ta) Surface Mount Die Outline (7-Solder Bar), eGaN®	View
EPC2030	EPC, N-Channel 40V 31A (Ta) Surface Mount Die, eGaN®	View
EPC2020	EPC, N-Channel 60V 90A (Ta) Surface Mount Die, eGaN®	View
EPC2015C	EPC, N-Channel 40V 53A (Ta) Surface Mount Die, eGaN®	View
EPC2045	EPC, N-Channel 100V 16A (Ta) Surface Mount Die, eGaN®	View

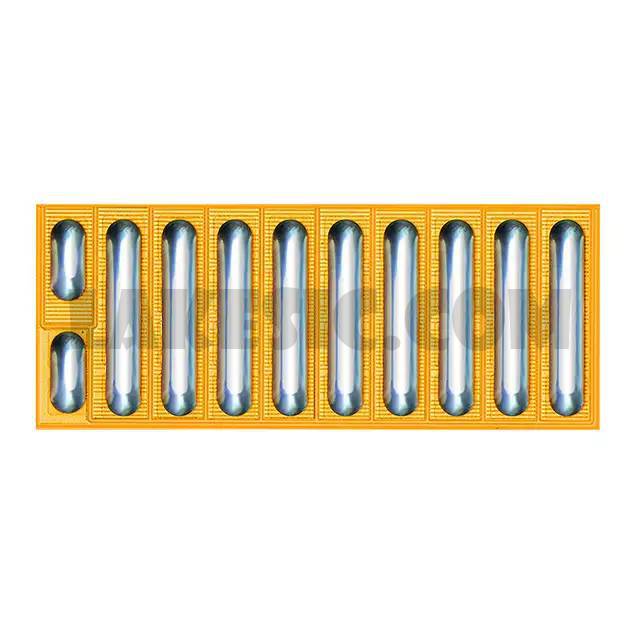

EPC2015C
