Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

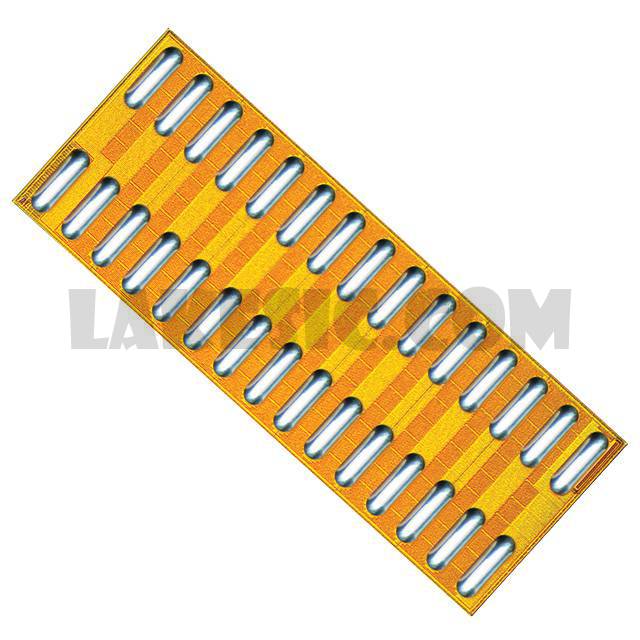

Datasheet	EPC2206
Standard Package	500
Manufacturer	EPC
Series	eGaN®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	80V
Current - Continuous Drain (Id) @ 25°C	90A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	2.2mOhm @ 29A, 5V
Vgs(th) (Max) @ Id	2.5V @ 13mA
Gate Charge (Qg) (Max) @ Vgs	19nC @ 5V
Vgs (Max)	+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds	1940pF @ 40V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Die
Package / Case	Die
