Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	SMG Series
Standard Package	2000
Manufacturer	United Chemi-Con
Series	SMG
Packaging	Bulk
Part Status	Active
Capacitance	0.47µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-25°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	13mA @ 120Hz
Ripple Current @ High Frequency	32.5mA @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.551" (14.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole

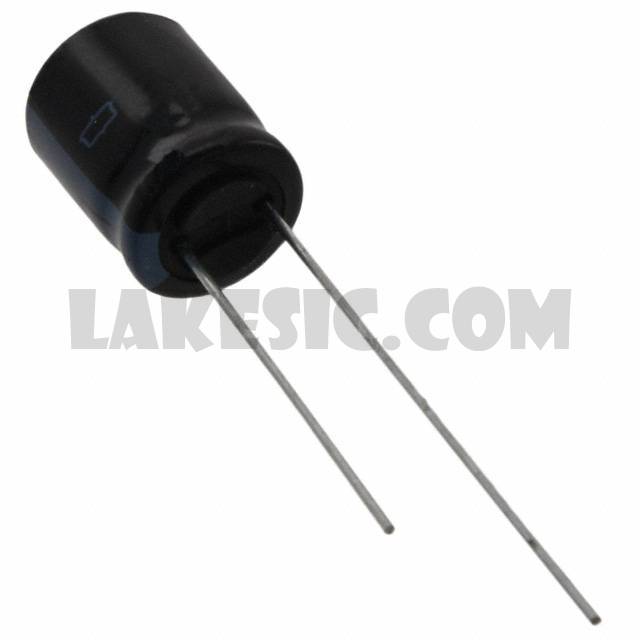

Package / Case	Radial, Can
