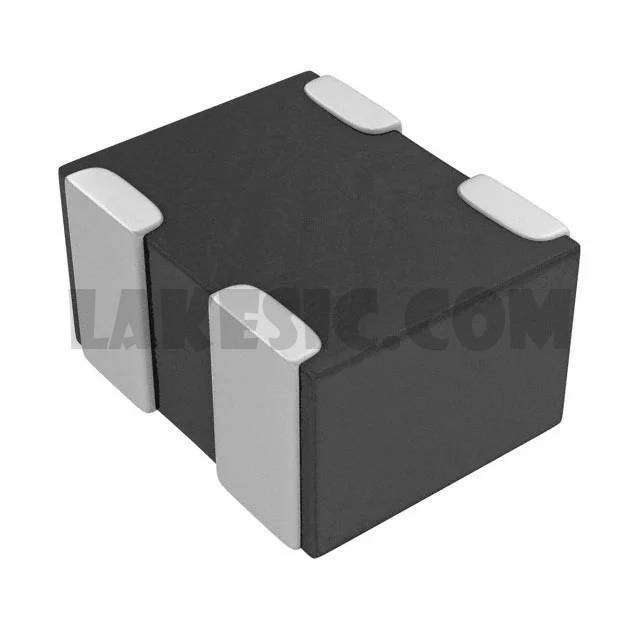

EXC-14CE900U


EXC-14CE900U

Part NumberEXC-14CE900U

Manufacturer

Description

Datasheet

Package / Case0302 (0806 Metric), 4 Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

EXC-14CE900U - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package10000
ManufacturerPanasonic Electronic Components
SeriesEXC14
PackagingTape & Reel (TR)
Part StatusActive
Filter TypeSignal Line
Number of Lines2
Impedance @ Frequency90 Ohms @ 100MHz
Current Rating (Max)130mA
DC Resistance (DCR) (Max)2.5Ohm
Voltage Rating - DC5V
Voltage Rating - AC-
Operating Temperature-40°C ~ 85°C
Ratings-
Approvals-
Features-
Mounting TypeSurface Mount
Size / Dimension0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max)0.018" (0.45mm)
Package / Case0302 (0806 Metric), 4 Lead
