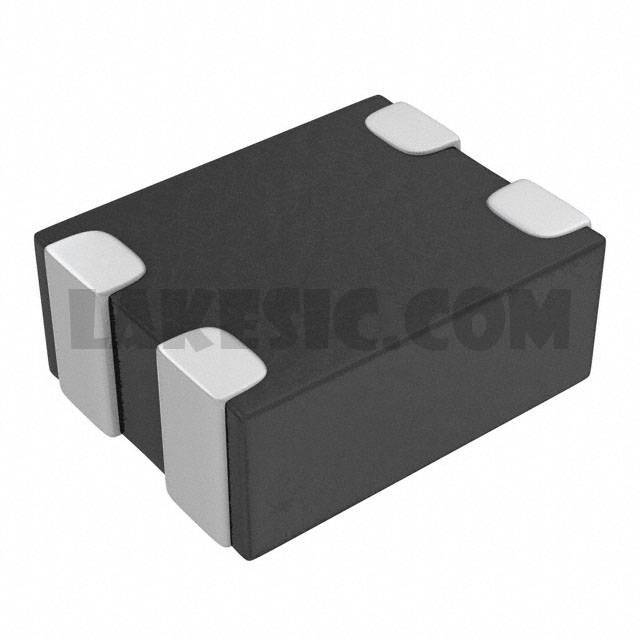

EXC-34CG900U

EXC-34CG900U

Part NumberEXC-34CG900U

ManufacturerPanasonic Electronic Components

DescriptionCMC 100MA 2LN 90 OHM SMD

DatasheetEXC-34CG,CE Series Datasheet

Package / Case0805 (2012 Metric), 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Surface Mount 90 Ohms @ 100MHz 100mA DCR 3Ohm

To learn about the specification of EXC-34CG900U, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EXC-34CG900U with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EXC-34CG900U.
We are offering EXC-34CG900U for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

EXC-34CG900U - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	EXC-34CG,CE Series Datasheet
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	EXC34
Packaging	Cut Tape (CT)
Part Status	Active
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	90 Ohms @ 100MHz
Current Rating (Max)	100mA
DC Resistance (DCR) (Max)	3Ohm
Voltage Rating - DC	5V
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 85°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max)	0.024" (0.60mm)
Package / Case	0805 (2012 Metric), 4 PC Pad
