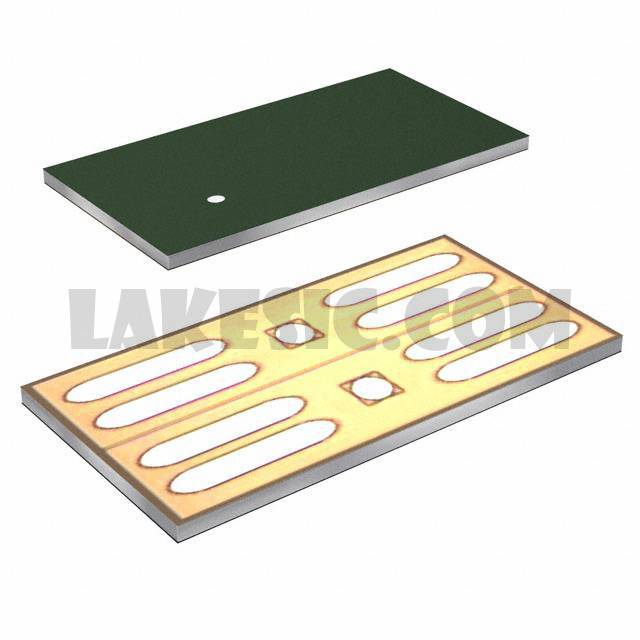

FCAB21520L1

Part NumberFCAB21520L1

ManufacturerPanasonic Electronic Components

DescriptionMOSFET 2 N-CHANNEL 10SMD

DatasheetFCAB21520L1 Datasheet~

Package / Case10-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 3.8W (Ta) Surface Mount 10-SMD

To learn about the specification of FCAB21520L1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FCAB21520L1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FCAB21520L1.
We are offering FCAB21520L1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FCAB21520L1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FCAB21520L1 Datasheet~
Standard Package	1000
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	-
Current - Continuous Drain (Id) @ 25°C	-
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	1.4V @ 1.64mA
Gate Charge (Qg) (Max) @ Vgs	38nC @ 4V
Input Capacitance (Ciss) (Max) @ Vds	5250pF @ 10V
Power - Max	3.8W (Ta)
Operating Temperature	150°C
Mounting Type	Surface Mount
Package / Case	10-SMD, No Lead
Supplier Device Package	10-SMD
