FDM3622

FDM3622

Part NumberFDM3622

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 100V 4.4A 8MLP

DatasheetFDM3622

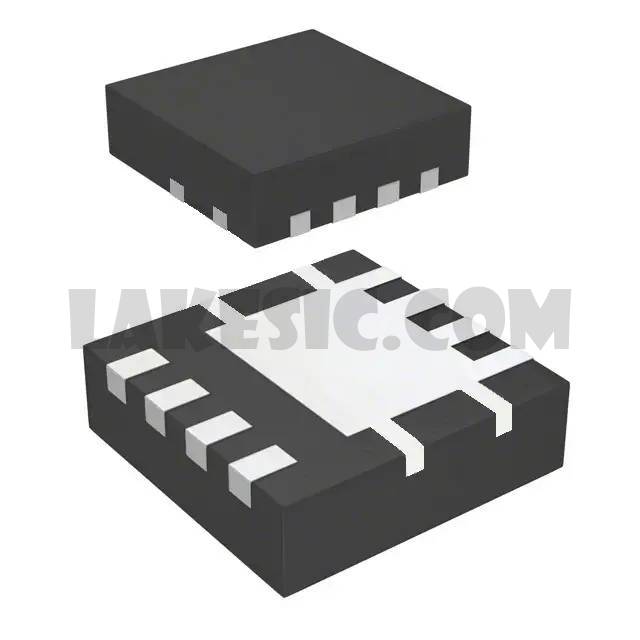

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 4.4A (Ta) 2.1W (Ta) Surface Mount 8-MLP (3.3x3.3)

To learn about the specification of FDM3622, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDM3622 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDM3622.
We are offering FDM3622 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDM3622 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDM3622
Standard Package	1
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	4.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	60mOhm @ 4.4A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	17nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1090pF @ 25V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-MLP (3.3x3.3)
Package / Case	8-PowerWDFN
