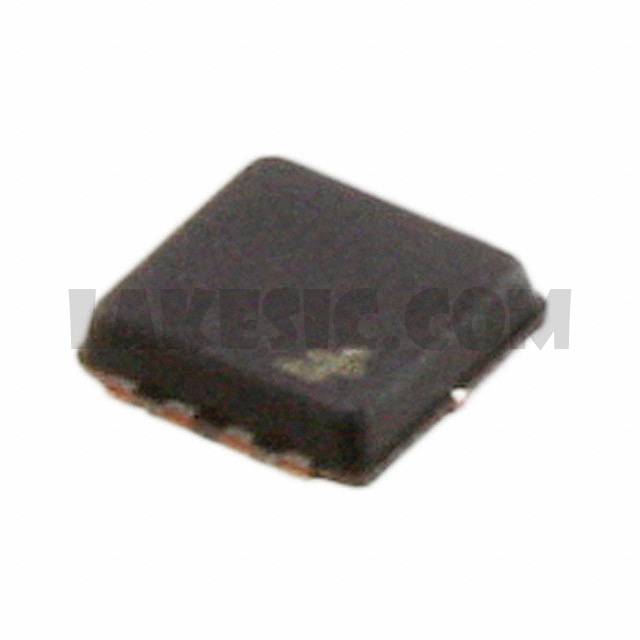

FDMC86116LZ

FDMC86116LZ

Part NumberFDMC86116LZ

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 100V 3.3A 8-MLP

DatasheetFDMC86116LZ

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 3.3A (Ta), 7.5A (Tc) 2.3W (Ta), 19W (Tc) Surface Mount 8-MLP (3.3x3.3)

To learn about the specification of FDMC86116LZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMC86116LZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMC86116LZ.
We are offering FDMC86116LZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMC86116LZ - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDMC86116LZ
Standard Package	3000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	3.3A (Ta), 7.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	103mOhm @ 3.3A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	310pF @ 50V
FET Feature	-
Power Dissipation (Max)	2.3W (Ta), 19W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-MLP (3.3x3.3)
Package / Case	8-PowerWDFN
