FDMC86244

FDMC86244

Part NumberFDMC86244

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 150V 2.8A POWER33

DatasheetFDMC86244

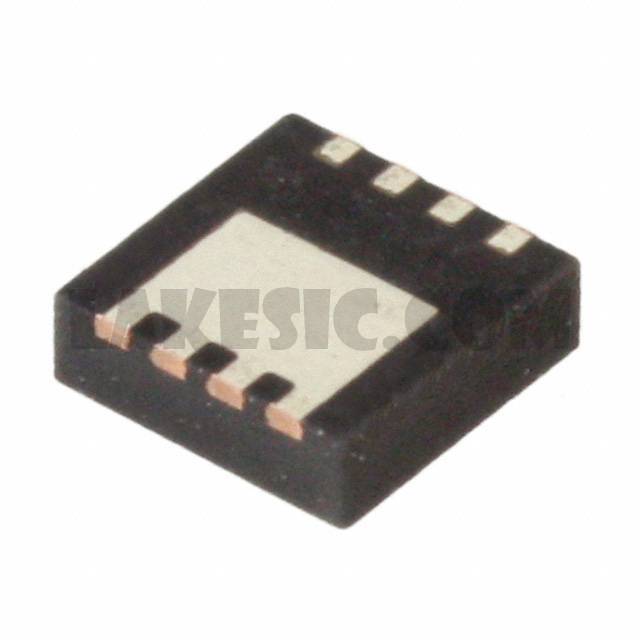

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 150V 2.8A (Ta), 9.4A (Tc) 2.3W (Ta), 26W (Tc) Surface Mount 8-MLP (3.3x3.3)

To learn about the specification of FDMC86244, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMC86244 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMC86244.
We are offering FDMC86244 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMC86244 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDMC86244
Standard Package	3000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150V
Current - Continuous Drain (Id) @ 25°C	2.8A (Ta), 9.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	134mOhm @ 2.8A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5.9nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	345pF @ 75V
FET Feature	-
Power Dissipation (Max)	2.3W (Ta), 26W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-MLP (3.3x3.3)
Package / Case	8-PowerWDFN
