FDMS3602S

FDMS3602S

Part NumberFDMS3602S

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 25V 15A/26A POWER56

DatasheetFDMS3602S

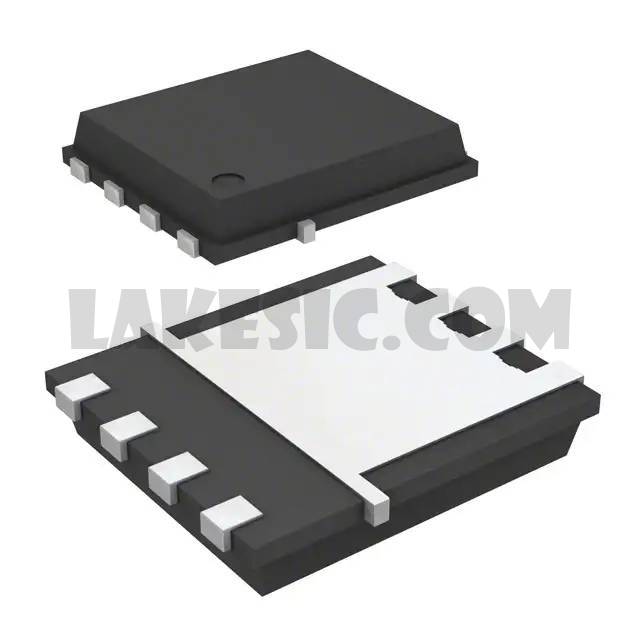

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 25V 15A, 26A 1W Surface Mount Power56

To learn about the specification of FDMS3602S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMS3602S with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMS3602S.
We are offering FDMS3602S for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMS3602S - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FDMS3602S
Standard Package	1
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25°C	15A, 26A
Rds On (Max) @ Id, Vgs	5.6mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	27nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1680pF @ 13V
Power - Max	1W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerTDFN
Supplier Device Package	Power56
