HP8KA1TB

Part NumberHP8KA1TB

ManufacturerRohm Semiconductor

DescriptionMOSFET 2N-CH 30V 14A HSOP8

DatasheetHP8KA1

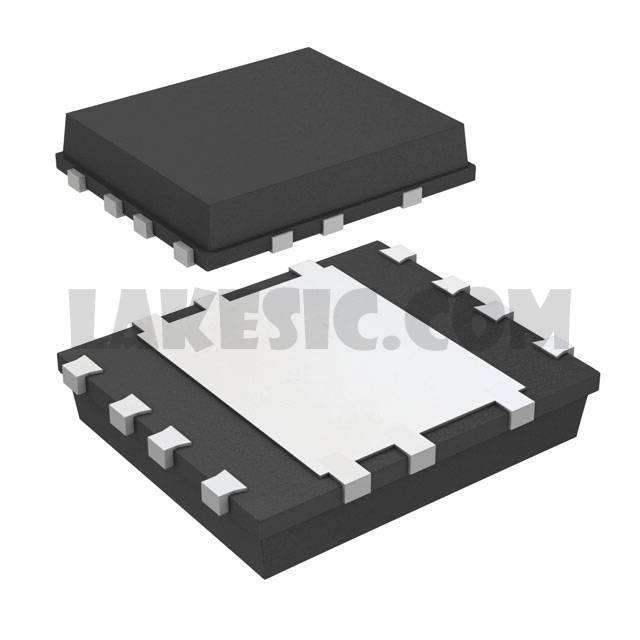

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 30V 14A 3W Surface Mount 8-HSOP

To learn about the specification of HP8KA1TB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HP8KA1TB with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HP8KA1TB.
We are offering HP8KA1TB for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HP8KA1TB - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

HP8KA1

Standard Package

2500

Manufacturer

Rohm Semiconductor

Series

Packaging

Tape & Reel (TR)

Part Status

Active

FET Type

2 N-Channel (Dual)

FET Feature

Logic Level Gate

Drain to Source Voltage (Vdss)

30V

Current - Continuous Drain (Id) @ 25°C

14A

Rds On (Max) @ Id, Vgs

5mOhm @ 14A, 10V

Vgs(th) (Max) @ Id

2.5V @ 10mA

Gate Charge (Qg) (Max) @ Vgs

24nC @ 4.5V

Input Capacitance (Ciss) (Max) @ Vds

2550pF @ 15V

Power - Max

Operating Temperature

150°C (TJ)

Mounting Type

Surface Mount

Package / Case

8-PowerTDFN

Supplier Device Package

8-HSOP
