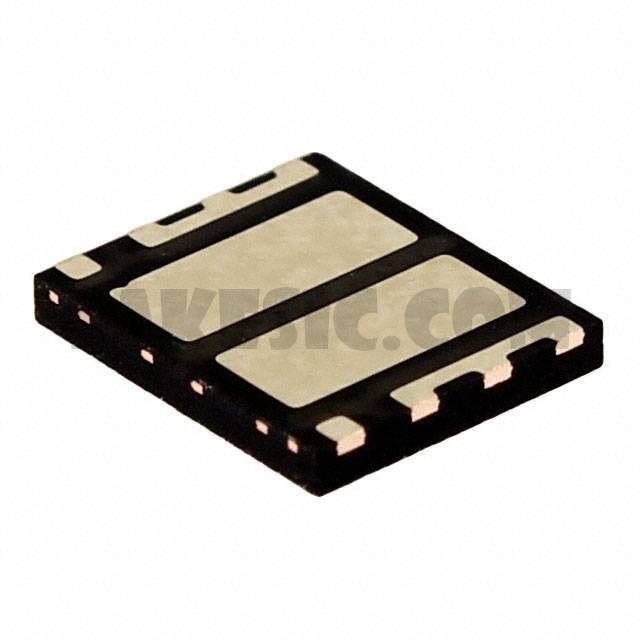

FDMS8090

FDMS8090

Part NumberFDMS8090

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 100V 10A PWR56

DatasheetFDMS8090

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 100V 10A 2.2W Surface Mount 8-MLP (5x6), Power56

To learn about the specification of FDMS8090, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMS8090 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMS8090.
We are offering FDMS8090 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMS8090 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FDMS8090
Standard Package	3000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	10A
Rds On (Max) @ Id, Vgs	13mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	27nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1800pF @ 50V
Power - Max	2.2W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-MLP (5x6), Power56
