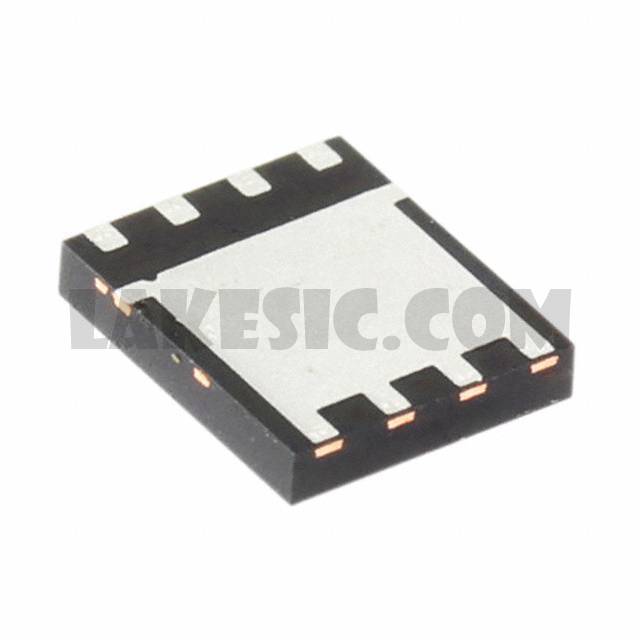

FDMS86152

FDMS86152

Part NumberFDMS86152

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 100V 14A POWER56

DatasheetFDMS86152 Datasheet

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 14A (Ta), 45A (Tc) 2.7W (Ta), 125W (Tc) Surface Mount Power56

To learn about the specification of FDMS86152, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMS86152 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMS86152.
We are offering FDMS86152 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMS86152 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDMS86152 Datasheet
Standard Package	1
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	14A (Ta), 45A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	6mOhm @ 14A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	50nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3370pF @ 50V
FET Feature	-
Power Dissipation (Max)	2.7W (Ta), 125W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Power56
Package / Case	8-PowerTDFN
