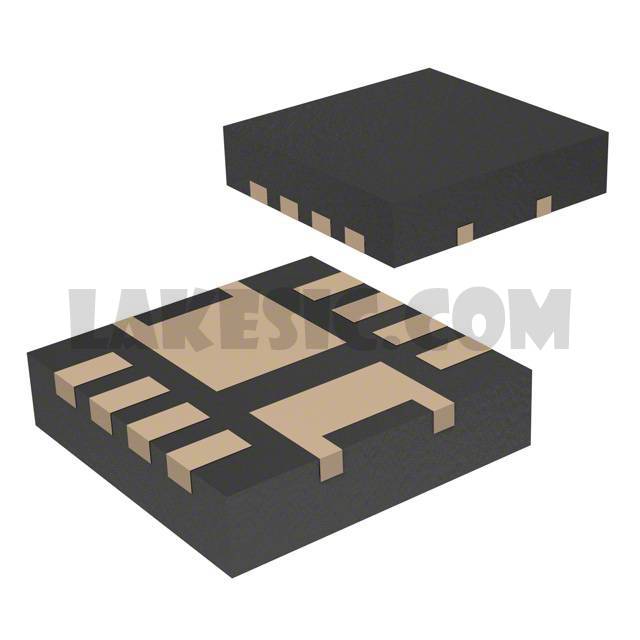

FDPC8011S

FDPC8011S

Part NumberFDPC8011S

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 25V 13A/27A 8PQFN

DatasheetFDPC8011S

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Asymmetrical 25V 13A, 27A 800mW, 900mW Surface Mount Powerclip-33

To learn about the specification of FDPC8011S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDPC8011S with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDPC8011S.
We are offering FDPC8011S for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDPC8011S - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FDPC8011S
Standard Package	3000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual) Asymmetrical
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25°C	13A, 27A
Rds On (Max) @ Id, Vgs	6mOhm @ 13A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	19nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1240pF @ 13V
Power - Max	800mW, 900mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	Powerclip-33
Base Part Number	FDPC8011S
