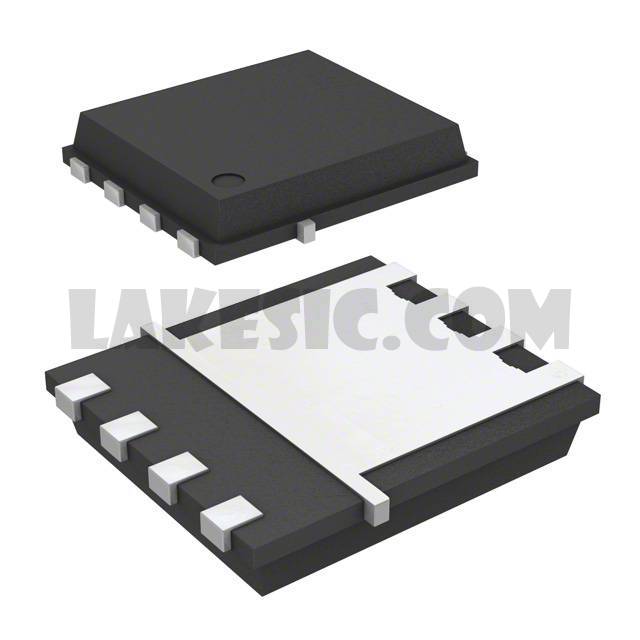

FDWS9508L-F085

FDWS9508L-F085

Part NumberFDWS9508L-F085

ManufacturerON Semiconductor

DescriptionPMOS PWR56 40V 4.9 MOHM

DatasheetFDWS9508L-F085

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 40V 80A (Tc) 214W (Tj) Surface Mount 8-PQFN (5x6)

To learn about the specification of FDWS9508L-F085, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDWS9508L-F085 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDWS9508L-F085.
We are offering FDWS9508L-F085 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDWS9508L-F085 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDWS9508L-F085
Standard Package	3000
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101, PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.9mOhm @ 80A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	107nC @ 10V
Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	4840pF @ 20V
FET Feature	-
Power Dissipation (Max)	214W (Tj)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (5x6)
Package / Case	8-PowerTDFN
