FGA60N65SMD
FGA60N65SMD

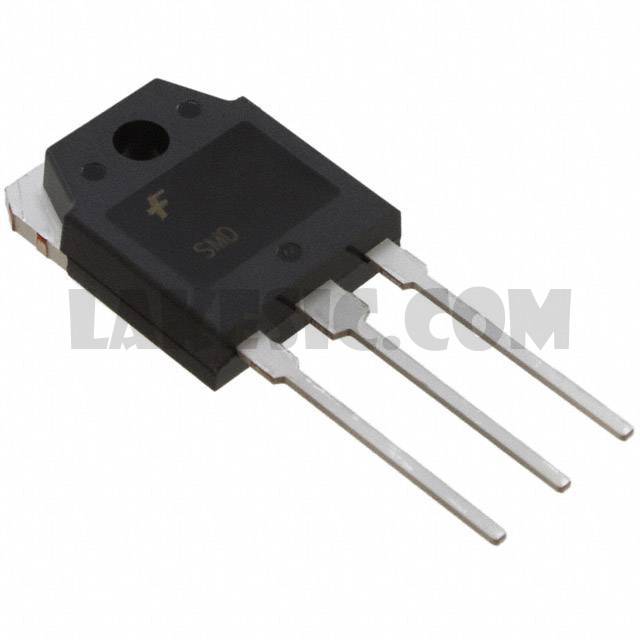

Part Number FGA60N65SMD Description IGBT 650V 120A 600W TO3P Package / Case TO-3P-3, SC-65-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Field Stop 650V 120A 600W Through Hole TO-3P
To learn about the specification of FGA60N65SMD, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FGA60N65SMD with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FGA60N65SMD.
We are offering FGA60N65SMD for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
FGA60N65SMD - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet FGA60N65SMD Standard Package 450 Manufacturer ON Semiconductor Series - Packaging Tube Part Status Active IGBT Type Field Stop Voltage - Collector Emitter Breakdown (Max) 650V Current - Collector (Ic) (Max) 120A Current - Collector Pulsed (Icm) 180A Vce(on) (Max) @ Vge, Ic 2.5V @ 15V, 60A Power - Max 600W Switching Energy 1.54mJ (on), 450µJ (off) Input Type Standard Gate Charge 189nC Td (on/off) @ 25°C 18ns/104ns Test Condition 400V, 60A, 3Ohm, 15V Reverse Recovery Time (trr) 47ns Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-3P-3, SC-65-3 Supplier Device Package TO-3P
