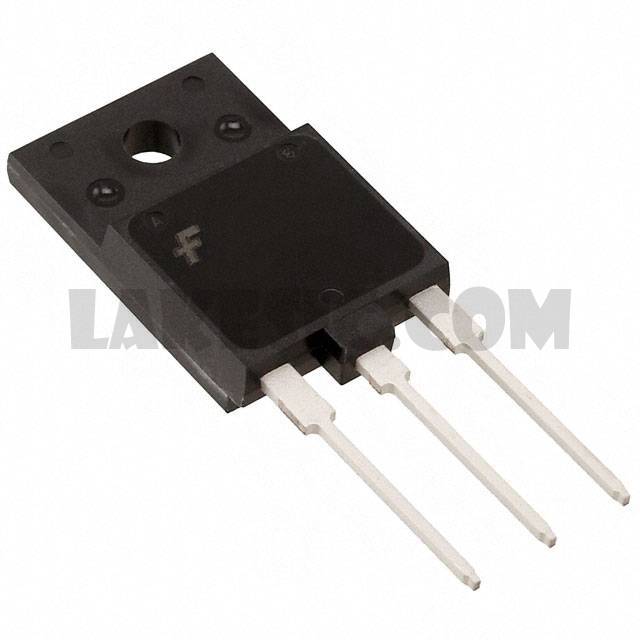

FGAF20N60SMD
FGAF20N60SMD
Part Number FGAF20N60SMD Description IGBT 600V 40A 62.5W TO-3PF Package / Case TO-3P-3 Full PackUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Field Stop 600V 40A 75W Through Hole TO-3PF
To learn about the specification of FGAF20N60SMD, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FGAF20N60SMD with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FGAF20N60SMD.
We are offering FGAF20N60SMD for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
FGAF20N60SMD - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet FGAF20N60SMD Standard Package 360 Manufacturer ON Semiconductor Series - Packaging Tube Part Status Active IGBT Type Field Stop Voltage - Collector Emitter Breakdown (Max) 600V Current - Collector (Ic) (Max) 40A Current - Collector Pulsed (Icm) 60A Vce(on) (Max) @ Vge, Ic 1.7V @ 15V, 20A Power - Max 75W Switching Energy 452µJ (on), 141µJ (off) Input Type Standard Gate Charge 64nC Td (on/off) @ 25°C 12ns/91ns Test Condition 400V, 20A, 10Ohm, 15V Reverse Recovery Time (trr) 26.7ns Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-3P-3 Full Pack Supplier Device Package TO-3PF
