Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	STGP15M65DF2 Datasheet
Standard Package	50
Manufacturer	STMicroelectronics
Series	-
Packaging	Tube
Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	650V
Current - Collector (Ic) (Max)	30A
Current - Collector Pulsed (Icm)	60A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 15A
Power - Max	136W
Switching Energy	90µJ (on), 450µJ (off)
Input Type	Standard
Gate Charge	45nC
Td (on/off) @ 25°C	24ns/93ns
Test Condition	400V, 15A, 12Ohm, 15V
Reverse Recovery Time (trr)	142ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole

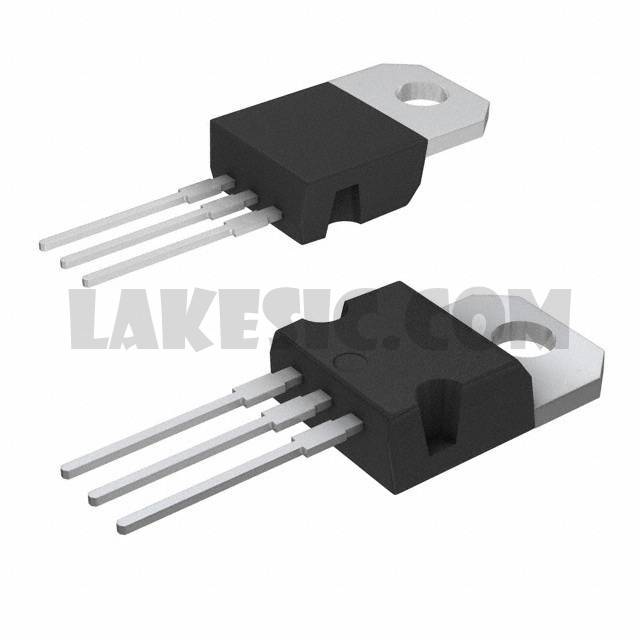

Package / Case	TO-220-3
Supplier Device Package	TO-220
