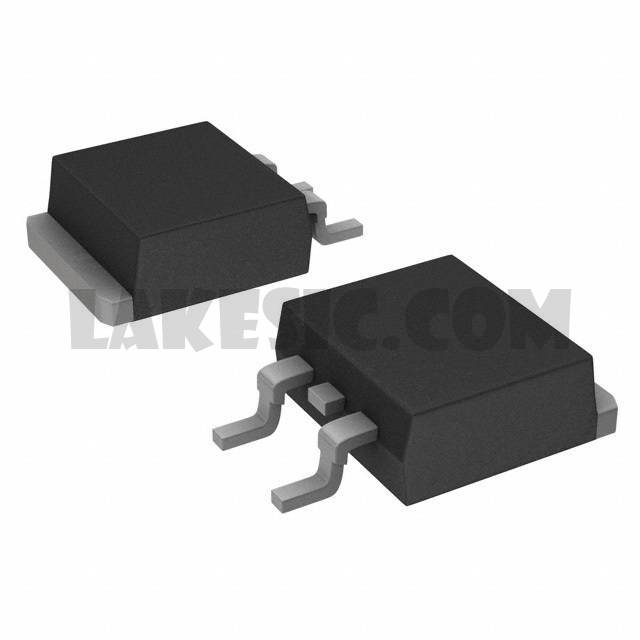

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	FGB20N60SFD_F085
Standard Package	1
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
IGBT Type	Field Stop
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	40A
Current - Collector Pulsed (Icm)	60A
Vce(on) (Max) @ Vge, Ic	2.85V @ 15V, 20A
Power - Max	208W
Switching Energy	310µJ (on), 130µJ (off)
Input Type	Standard
Gate Charge	63nC
Td (on/off) @ 25°C	10ns/90ns
Test Condition	400V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)	111ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	D²PAK
Base Part Number	FGB20N60
