Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	IXBF32N300
Standard Package	25
Manufacturer	IXYS
Series	BIMOSFET™
Packaging	Tube
Part Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	3000V
Current - Collector (Ic) (Max)	40A
Current - Collector Pulsed (Icm)	250A
Vce(on) (Max) @ Vge, Ic	3.2V @ 15V, 32A
Power - Max	160W
Switching Energy	-
Input Type	Standard
Gate Charge	142nC
Td (on/off) @ 25°C	-
Test Condition	-
Reverse Recovery Time (trr)	1.5µs
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole

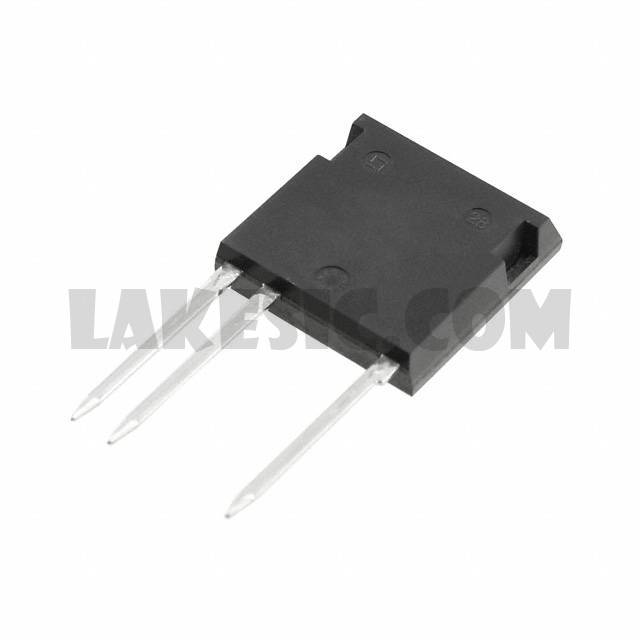

Package / Case	i4-Pac™-5 (3 Leads)
Supplier Device Package	ISOPLUS i4-PAC™
