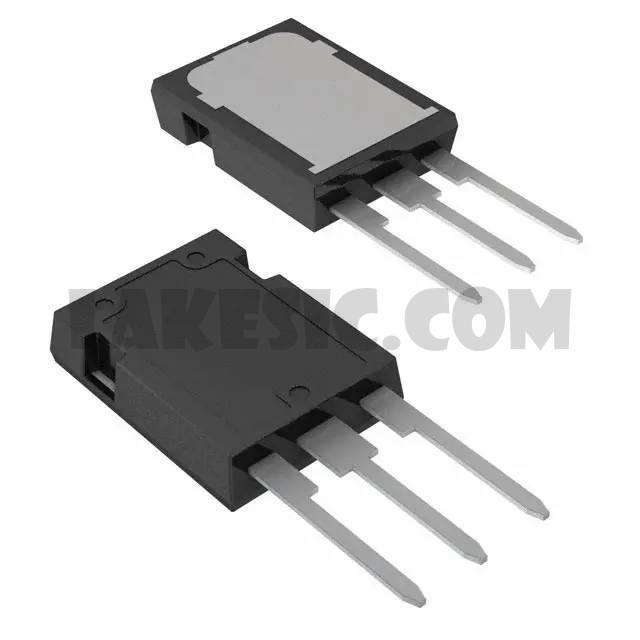

Part Number STGY80H65DFB
Description IGBT 650V 120A 469W MAX247
Package / Case TO-247-3
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description IGBT Trench Field Stop 650V 120A 469W Through Hole MAX247™
To learn about the specification of STGY80H65DFB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STGY80H65DFB with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STGY80H65DFB.
We are offering STGY80H65DFB for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
STGY80H65DFB - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet STGx(x)80H65DFB
Standard Package 30
Manufacturer STMicroelectronics
Series -
Packaging Tube
Part Status Active
IGBT Type Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) 650V
Current - Collector (Ic) (Max) 120A
Current - Collector Pulsed (Icm) 240A
Vce(on) (Max) @ Vge, Ic 2V @ 15V, 80A
Power - Max 469W
Switching Energy 2.1mJ (on), 1.5mJ (off)
Input Type Standard
Gate Charge 414nC
Td (on/off) @ 25°C 84ns/280ns
Test Condition 400V, 80A, 10Ohm, 15V
Reverse Recovery Time (trr) 85ns
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package MAX247™
