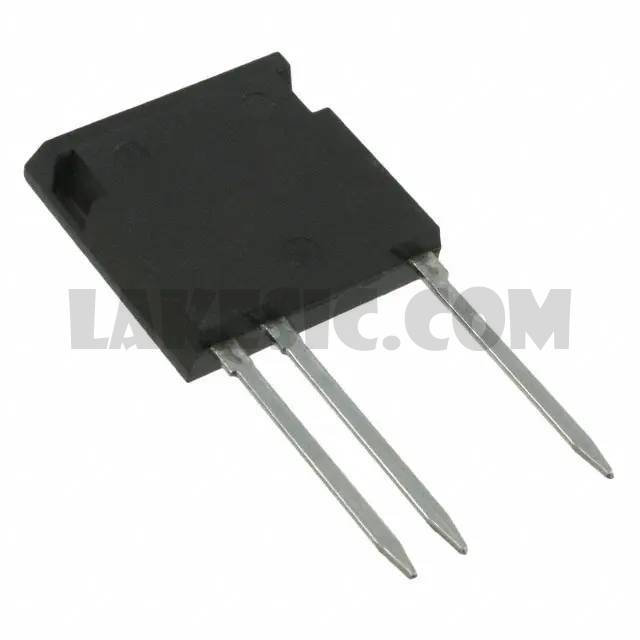

IXLF19N250A
IXLF19N250A
Part Number IXLF19N250A
Manufacturer IXYS
Description IGBT 2500V 32A 250W I4PAC
Package / Case i4-Pac™-5 (3 Leads)
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description IGBT NPT 2500V 32A 250W Through Hole ISOPLUS i4-PAC™
To learn about the specification of IXLF19N250A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXLF19N250A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXLF19N250A.
We are offering IXLF19N250A for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IXLF19N250A - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IXLF19N250A
Standard Package 25
Manufacturer IXYS
Series -
Packaging Bulk
Part Status Active
IGBT Type NPT
Voltage - Collector Emitter Breakdown (Max) 2500V
Current - Collector (Ic) (Max) 32A
Vce(on) (Max) @ Vge, Ic 3.9V @ 15V, 19A
Power - Max 250W
Switching Energy 15mJ (on), 30mJ (off)
Input Type Standard
Gate Charge 142nC
Td (on/off) @ 25°C -
Test Condition 1500V, 19A, 47Ohm, 15V
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case i4-Pac™-5 (3 Leads)
Supplier Device Package ISOPLUS i4-PAC™
