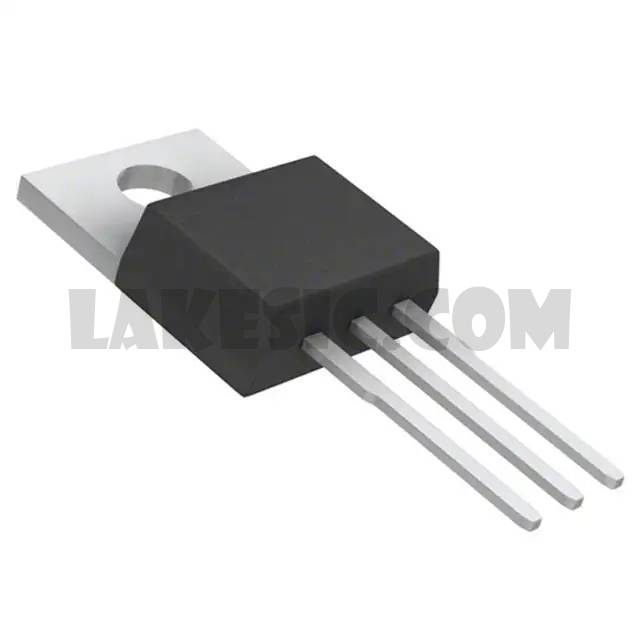

AOTF15B65M2
AOTF15B65M2
Part Number AOTF15B65M2
Description IGBT 650V 15A TO220
Package / Case TO-220-3
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description IGBT 650V 30A 36W Through Hole TO-220
To learn about the specification of AOTF15B65M2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AOTF15B65M2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AOTF15B65M2.
We are offering AOTF15B65M2 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
AOTF15B65M2 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet AOTF15B65M2
Standard Package 1000
Manufacturer Alpha & Omega Semiconductor Inc.
Series Alpha IGBT™
Packaging Tube
Part Status Active
IGBT Type -
Voltage - Collector Emitter Breakdown (Max) 650V
Current - Collector (Ic) (Max) 30A
Current - Collector Pulsed (Icm) 45A
Vce(on) (Max) @ Vge, Ic 2.15V @ 15V, 15A
Power - Max 36W
Switching Energy 290µJ (on), 200µJ (off)
Input Type Standard
Gate Charge 32nC
Td (on/off) @ 25°C 15ns/94ns
Test Condition 400V, 15A, 20Ohm, 15V
Reverse Recovery Time (trr) 298ns
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220
