Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single

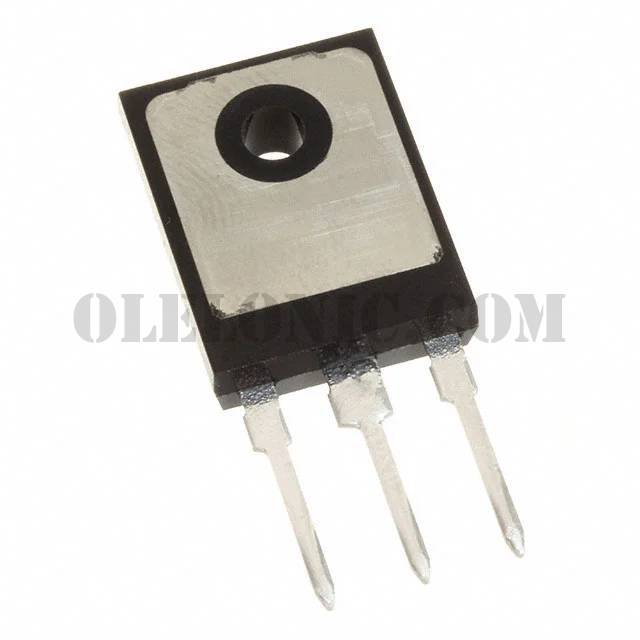

Datasheet	IKW30N65ES5
Standard Package	240
Manufacturer	Infineon Technologies
Series	TrenchStop™
Packaging	Tube
Part Status	Active
IGBT Type	Trench
Voltage - Collector Emitter Breakdown (Max)	650V
Current - Collector (Ic) (Max)	62A
Current - Collector Pulsed (Icm)	120A
Vce(on) (Max) @ Vge, Ic	1.7V @ 15V, 30A
Power - Max	188W
Switching Energy	560µJ (on), 320µJ (off)
Input Type	Standard
Gate Charge	70nC
Td (on/off) @ 25°C	17ns/124ns
Test Condition	400V, 30A, 13Ohm, 15V
Reverse Recovery Time (trr)	75ns
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	PG-TO247-3
